Components [10/2020 - ]

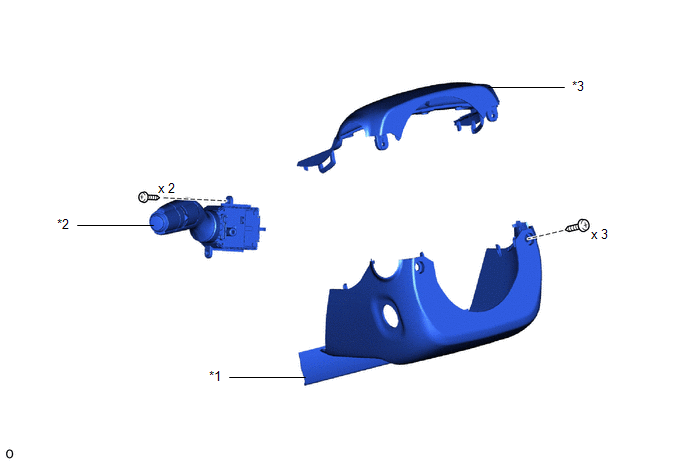

Fig 1: Automatic High Beam Main Switch Replacement Components
GTY970019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LOWER STEERING COLUMN COVER *2 TURN SIGNAL SWITCH
*3 UPPER STEERING COLUMN COVER - -
