Components [10/2023 - ]

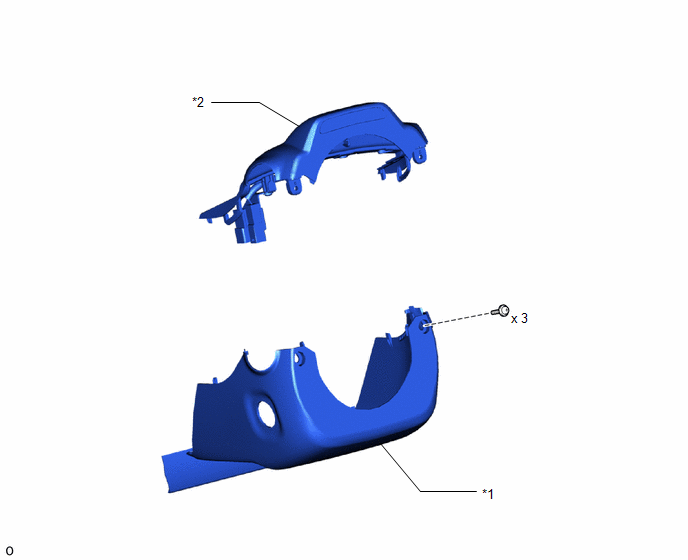

Fig 1: Driver Monitor Camera Replacement Components (1 Of 2)
GTY1235965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LOWER STEERING COLUMN COVER *2 UPPER STEERING COLUMN COVER

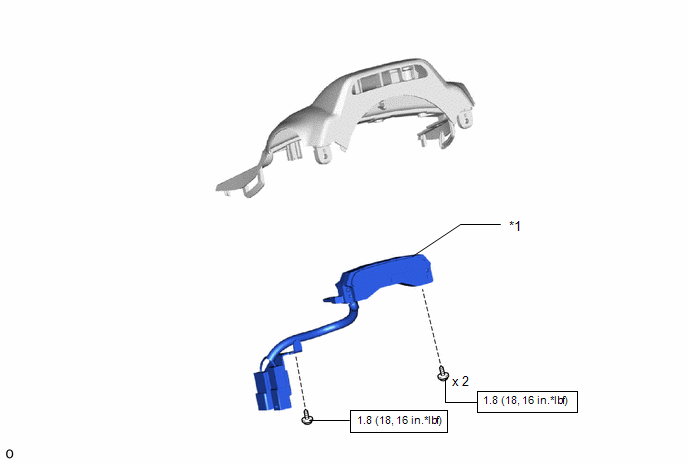

Fig 2: Driver Monitor Camera Replacement Components With Torque Specifications (2 Of 2)
GTY1236174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DRIVER MONITOR CAMERA - -
N.m (kgf/cm, ft.lbf): Specified torque - -
