Components [10/2023 - ]

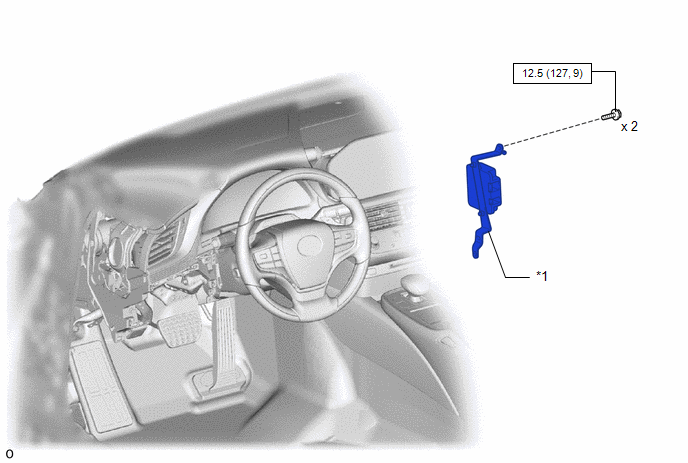

Fig 1: Driver Monitor ECU Replacement Components With Torque Specifications
GTY1236604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DRIVER MONITOR ECU ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
