Components [10/2020 - 10/2023]

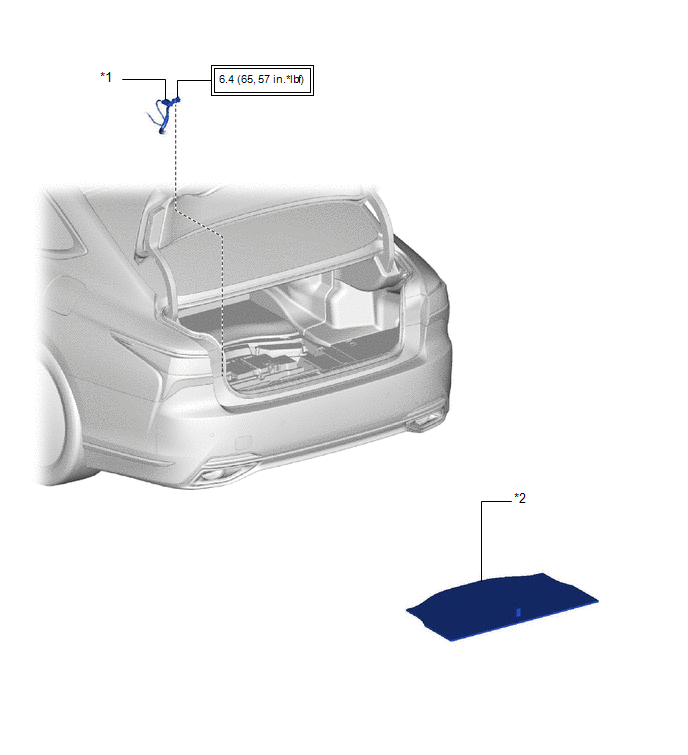

Fig 1: Driving Support ECU Replacement Components With Torque Specifications [10/2020 - 10/2023] (1 Of 2)
| *1 | NEGATIVE BATTERY TERMINAL | *2 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

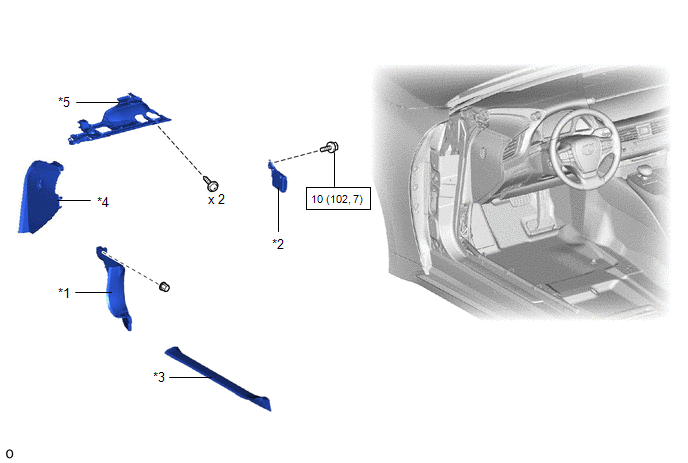

Fig 2: Driving Support ECU Replacement Components With Torque Specifications [10/2020 - 10/2023] (2 Of 2)
| *1 | COWL SIDE TRIM BOARD LH | *2 | DRIVING SUPPORT ECU ASSEMBLY |
| *3 | FRONT DOOR SCUFF PLATE LH | *4 | INSTRUMENT SIDE PANEL LH |
| *5 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
