Components [10/2020 - 11/2021]

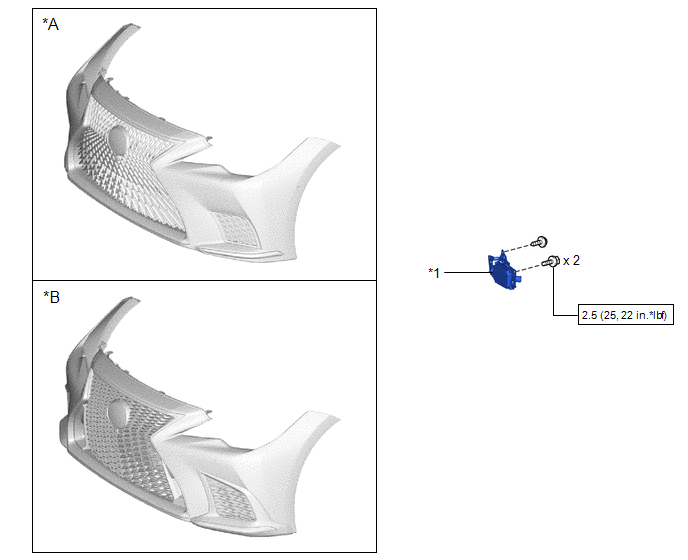

Fig 1: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications [10/2020 - 11/2021] (1 Of 2)
| *A | except Sport Package | *B | for Sport Package |
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

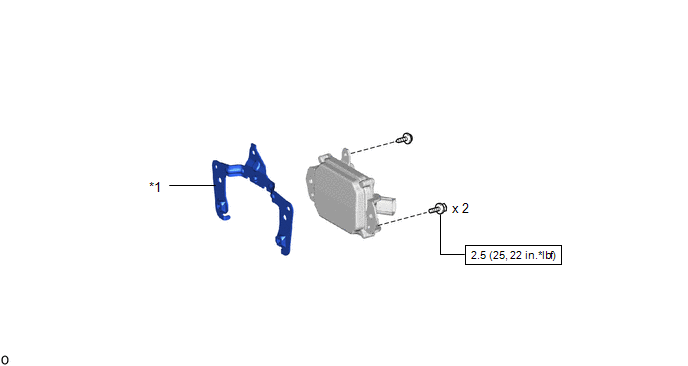

Fig 2: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications [10/2020 - 11/2021] (2 Of 2)
| *1 | NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
