Components [12/2017 - 10/2020]

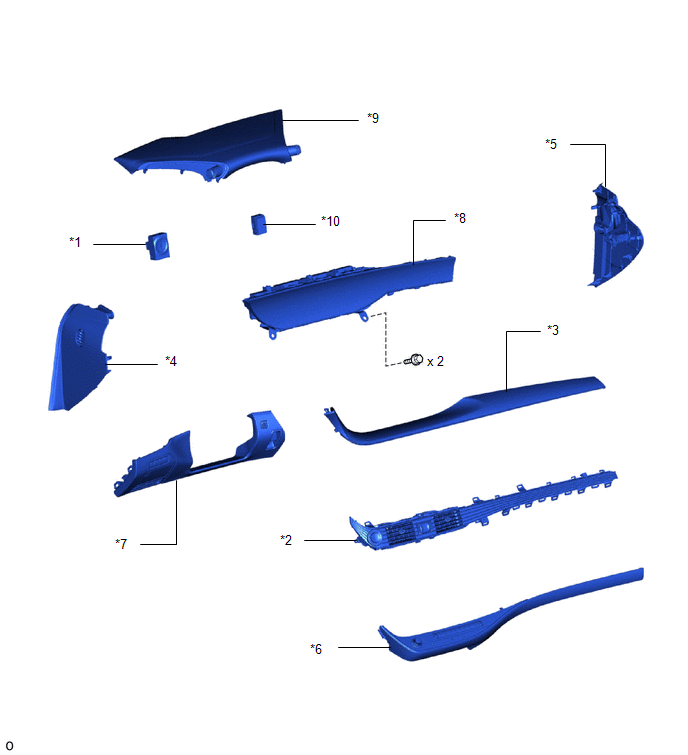

Fig 1: Multi-Display Replacement Components [12/2017 - 10/2020]
GTY834194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CLOCK ASSEMBLY *2 INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
*3 INSTRUMENT PANEL SAFETY PAD INSERT SUB-ASSEMBLY *4 INSTRUMENT SIDE PANEL LH
*5 INSTRUMENT SIDE PANEL RH *6 LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
*7 LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY *8 MULTI-DISPLAY
*9 NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY *10 TELLTALE LIGHT ASSEMBLY
