System Diagram [09/2019 - 10/2022]

for Driver Seat:

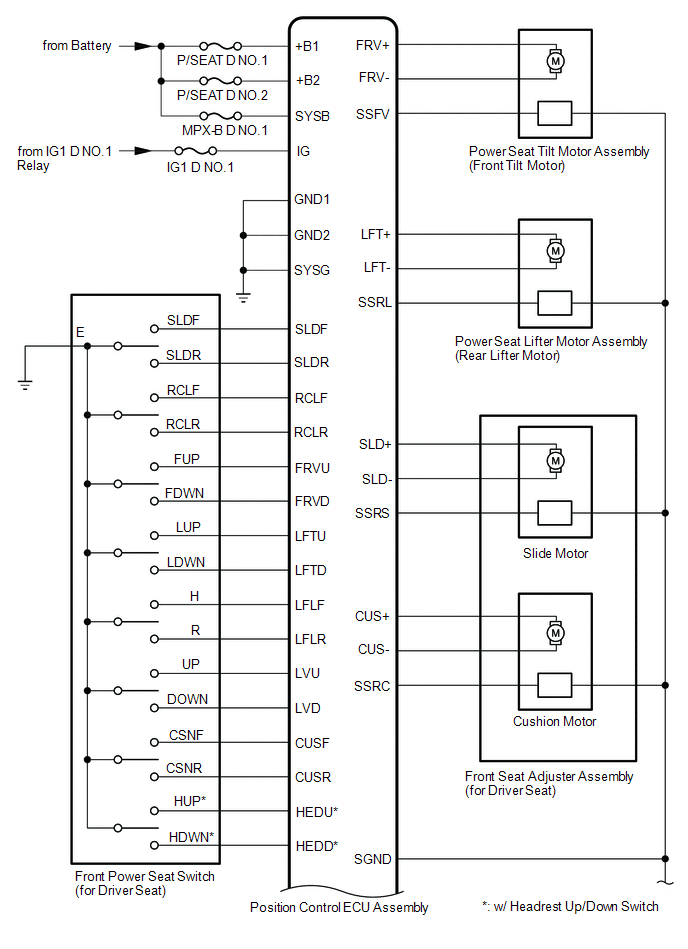

Fig 1: Front Power Seat Control System Diagram (For Driver Seat; 1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

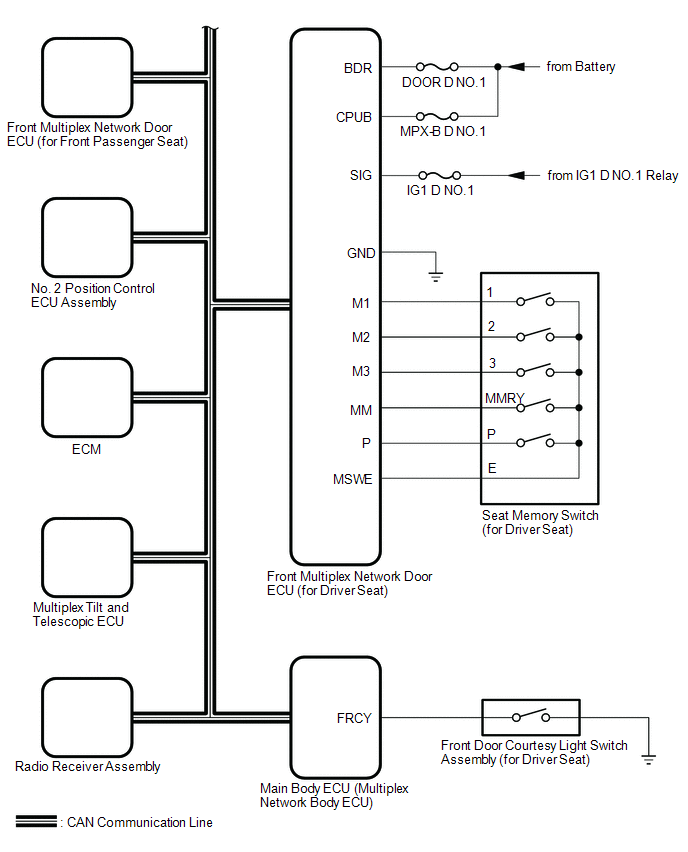

Fig 2: Front Power Seat Control System Diagram (For Driver Seat; 2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

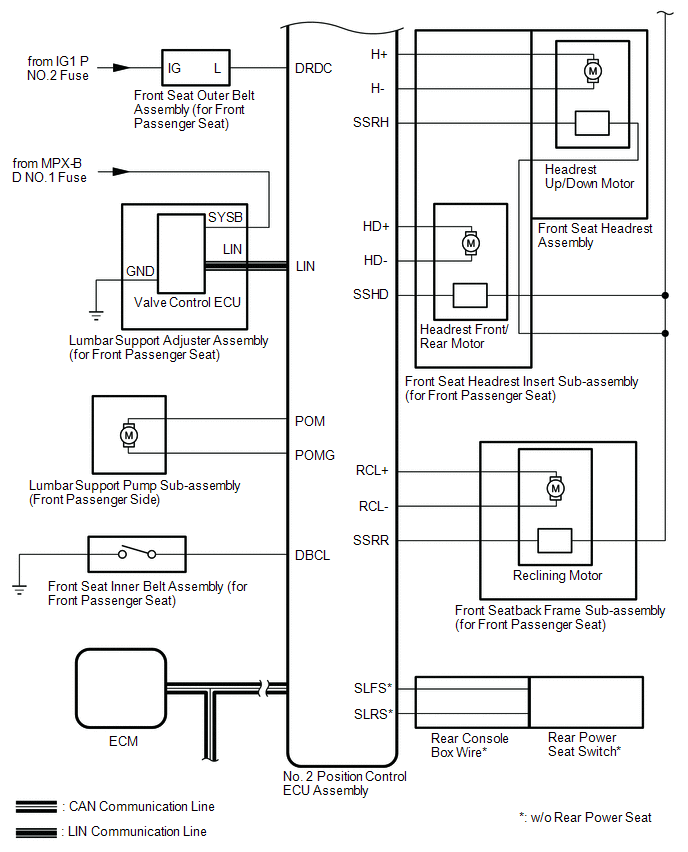

Fig 3: Front Power Seat Control System Diagram (For Driver Seat; 3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
ECM	Main body ECU (multiplex network body ECU)	Transmission information Shift position P signal	CAN
Front multiplex network door ECU (for Driver Seat)	Main body ECU (multiplex network body ECU)	M1 switch signal M2 switch signal M3 switch signal SET switch signal	CAN
Main body ECU (multiplex network body ECU)	Front multiplex network door ECU (for Driver Seat)	Shift position P signal Vehicle speed signal Transmission information Driving position buzzer request Driver seat position request Driver seat position data	CAN
Certification ECU (smart key ECU assembly)	Main body ECU (multiplex network body ECU)	Engine switch signal Memory call replay request Key identification No. 1 to No. 7 acquisition condition	CAN
Position control ECU assembly	Main body ECU (multiplex network body ECU)	State signal of driver seat State signal of driving position buzzer	CAN

for Front Passenger Seat:

Fig 4: Front Power Seat Control System Diagram (For Front Passenger Seat; 1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

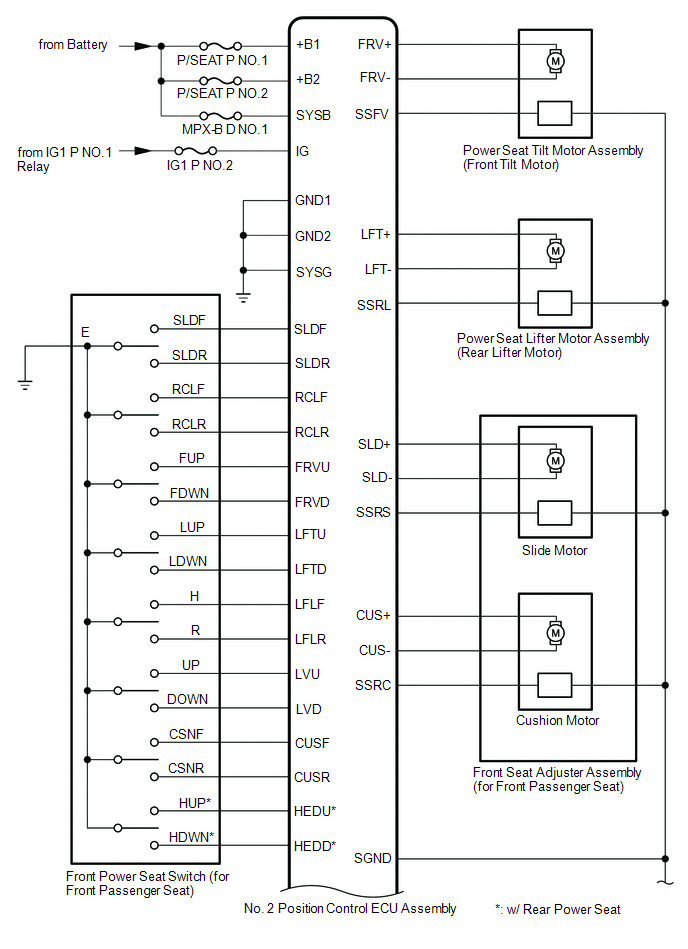

Fig 5: Front Power Seat Control System Diagram (For Front Passenger Seat; 2 Of 3)

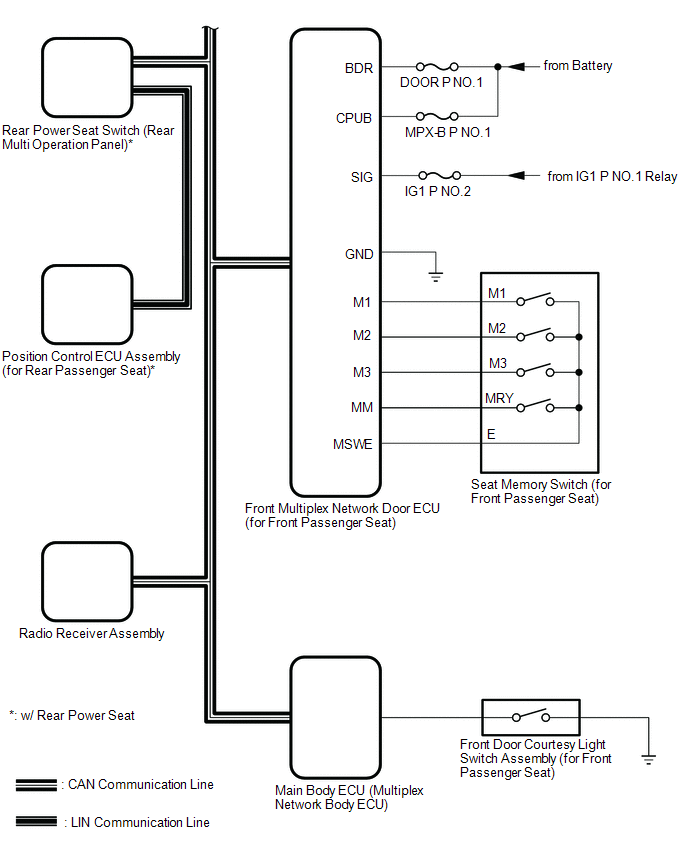

Fig 6: Front Power Seat Control System Diagram (For Front Passenger Seat; 3 Of 3)

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
ECM	Main body ECU (multiplex network body ECU)	Transmission information Shift position P signal	CAN
Main body ECU (multiplex network body ECU)	Position control ECU assembly (for Front Passenger Seat)	Shift position P signal Vehicle speed signal Transmission information Front passenger seat position request Front passenger seat position data	CAN
