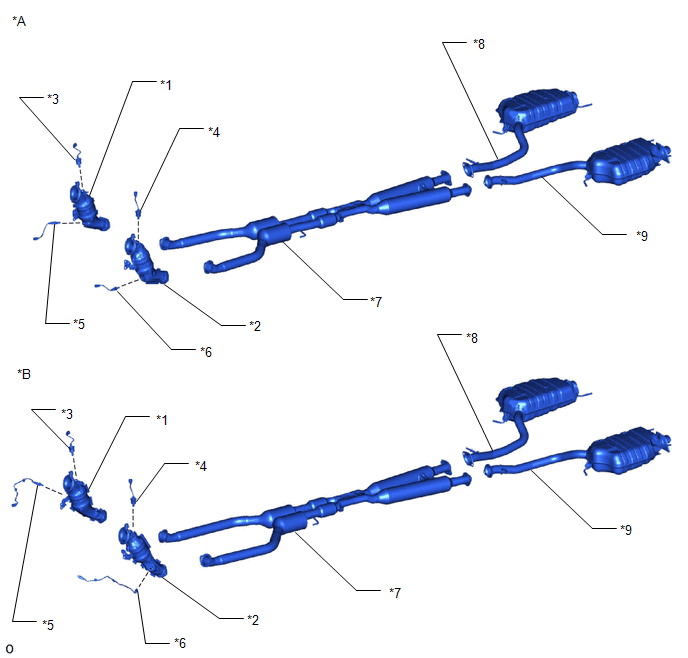

Catalyst Location
| *A | for 2WD | *B | for AWD |
| *1 | Converter Assembly RH (TWC: Front Catalyst) | *2 | Converter Assembly LH (TWC: Front Catalyst) |
| *3 | Air Fuel Ratio Sensor (Bank 1 Sensor 1) | *4 | Air Fuel Ratio Sensor (Bank 2 Sensor 1) |
| *5 | Air Fuel Ratio Sensor (Bank 1 Sensor 2) | *6 | Air Fuel Ratio Sensor (Bank 2 Sensor 2) |
| *7 | Front Exhaust Pipe Assembly (TWC: Rear Catalyst) | *8 | Exhaust Tailpipe Assembly RH |
| *9 | Exhaust Tailpipe Assembly LH | - | - |
NOTE:
- If DTC P0420-00 is output, replace the converter assembly RH (*1) and the front exhaust pipe assembly (*7) together when catalyst replacement is necessary (Excluding air fuel ratio sensor (sensor 1) *3 and air fuel ratio sensor (sensor 2) *5).
- If DTC P0430-00 is output, replace the converter assembly LH (*2) and the front exhaust pipe assembly (*7) together when catalyst replacement is necessary (Excluding air fuel ratio sensor (sensor 1) *4 and air fuel ratio sensor (sensor 2) *6).
