System Diagram [12/2017 - 10/2023]

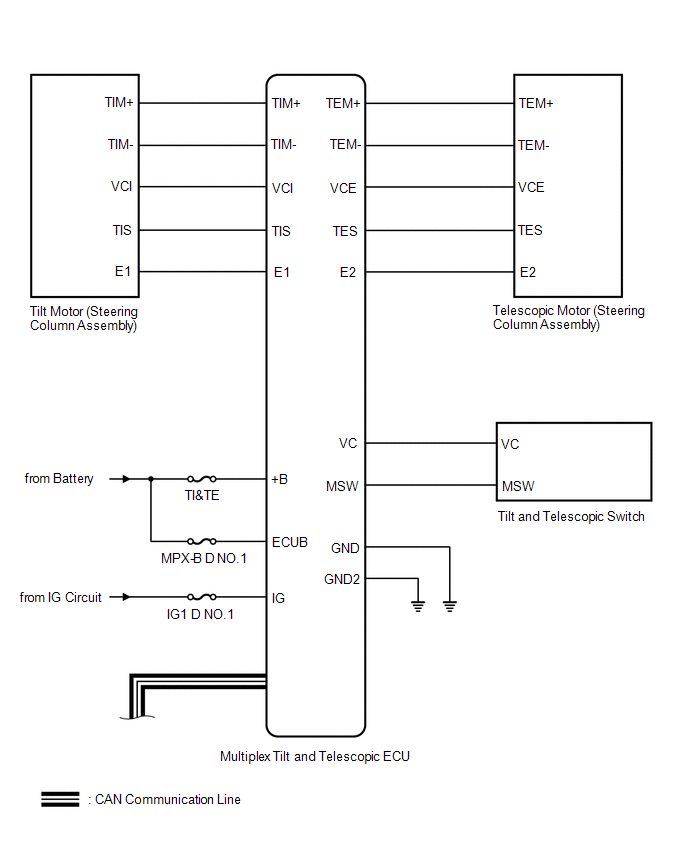

Fig 1: Power Tilt And Power Telescopic Steering Column System Diagram (1 Of 2)
GTY815830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

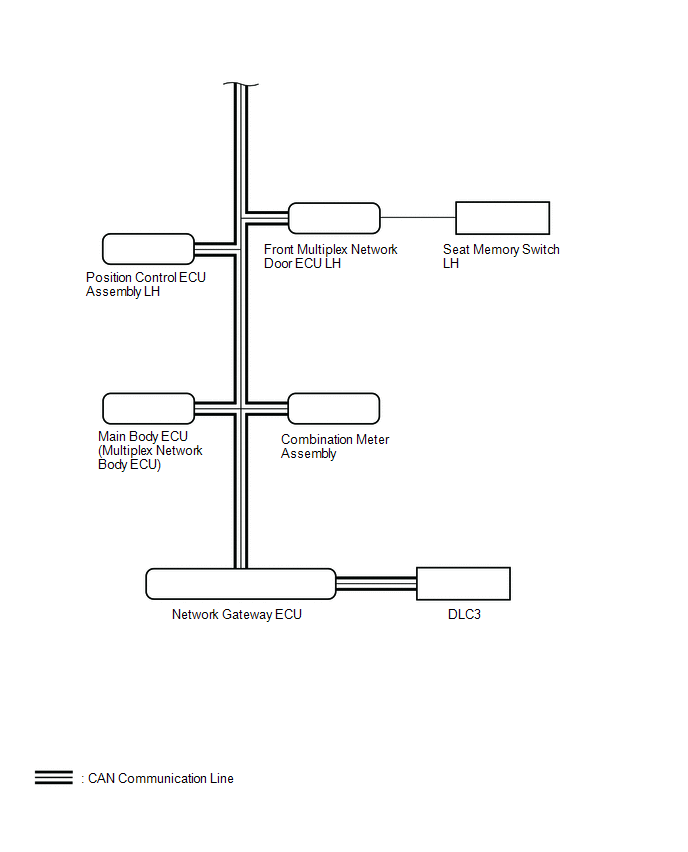

Fig 2: Power Tilt And Power Telescopic Steering Column System Diagram (2 Of 2)
GTY809503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU
(Transmitter)		 Receiving ECU Signal Communication Method
Main Body ECU (Multiplex Network Body ECU) Multiplex Tilt and Telescopic ECU
  • IG SW signal
  • Store command of driver seat memory
  • Recall command of driver seat memory
  • Auto away/return state signal
 CAN
Position Control ECU Assembly LH Multiplex Tilt and Telescopic ECU
  • Memory recall signal
  • Start signal to play tilt and telescopic steering
  • Stop signal to play memory
Combination Meter Assembly Multiplex Tilt and Telescopic ECU Vehicle speed signal
Multiplex Tilt and Telescopic ECU Main Body ECU (Multiplex Network Body ECU) State signal of tilt and telescopic steering
Multiplex Tilt and Telescopic ECU Position Control ECU Assembly LH
  • Tilt and telescopic recall and execution signal
  • Tilt and telescopic recall and end signal
Tilt and Telescopic Switch Multiplex Tilt and Telescopic ECU Tilt and Telescopic Switch signal Direct line
