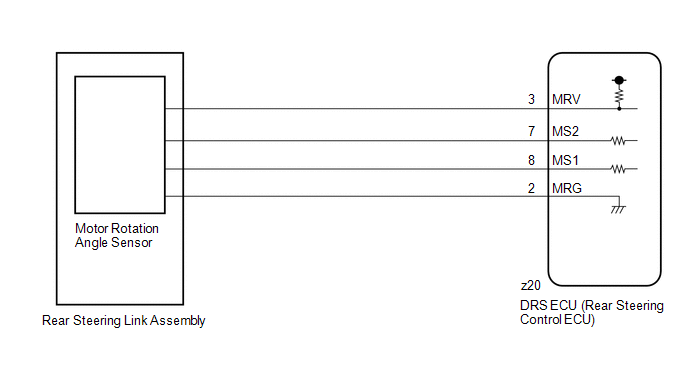

DTC C1B13: Motor Rotation Angle Not Detected [12/2017 - 10/2023]: Wiring Diagram

GTY775494

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
