System Diagram [10/2020 - 11/2021]

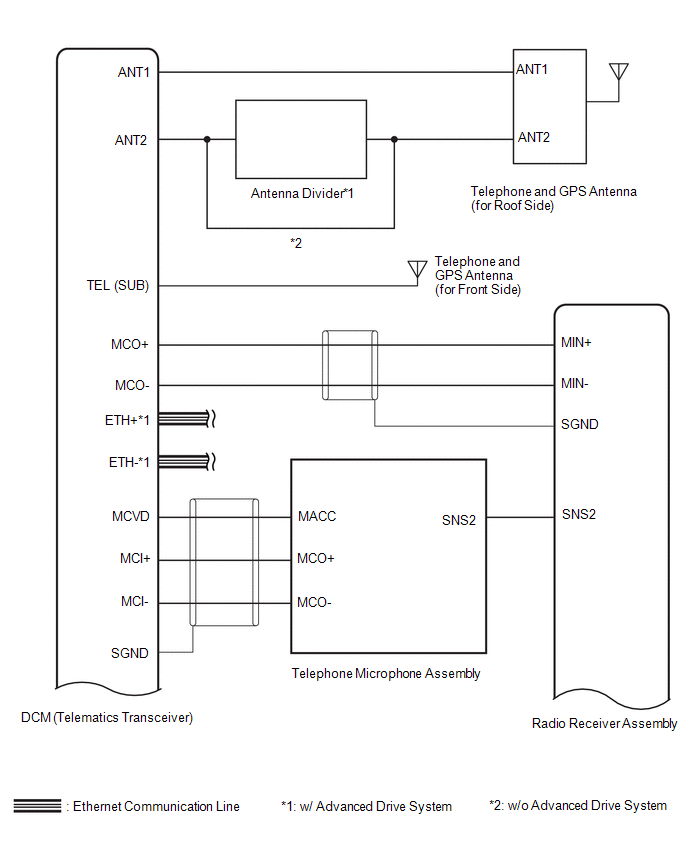

GTY970703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY791703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY970809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
