System Diagram [10/2023 - ]

WARNING: This page is about a different car, the 2024 Lexus LS 500h. However, it is still accessible from the selected car via links, so may be relevant.
  1. DOOR BUS LINES

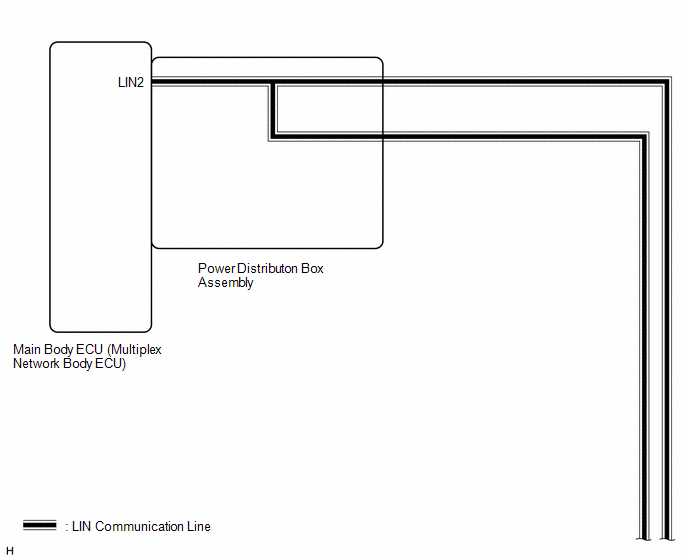

    GTY1235576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

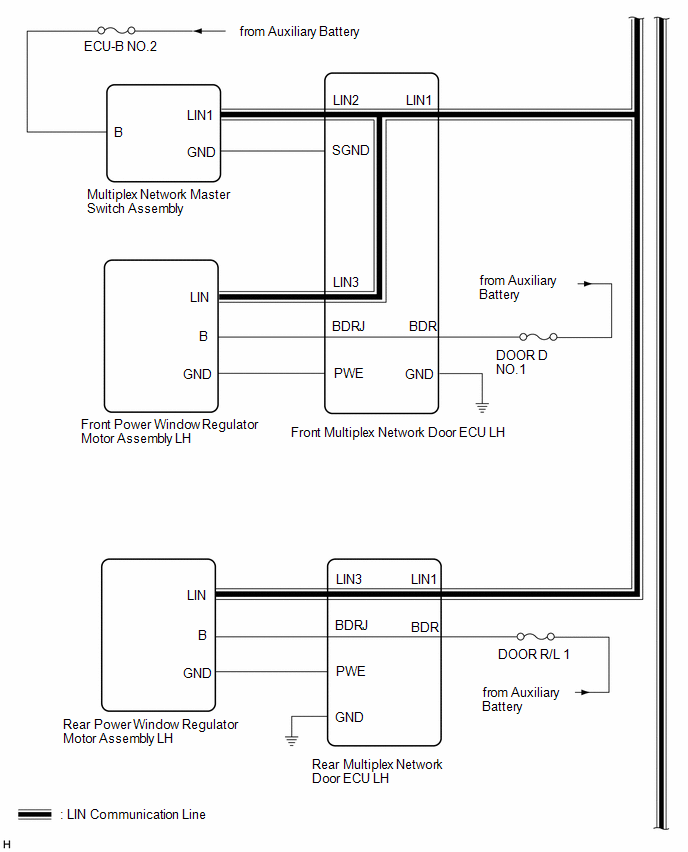

    GTY1238275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

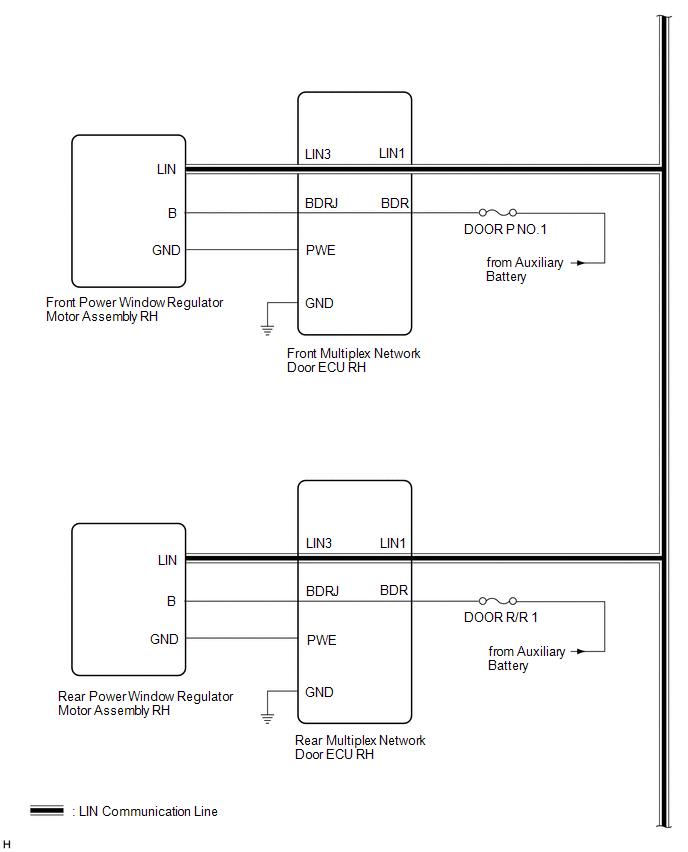

    GTY1227841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

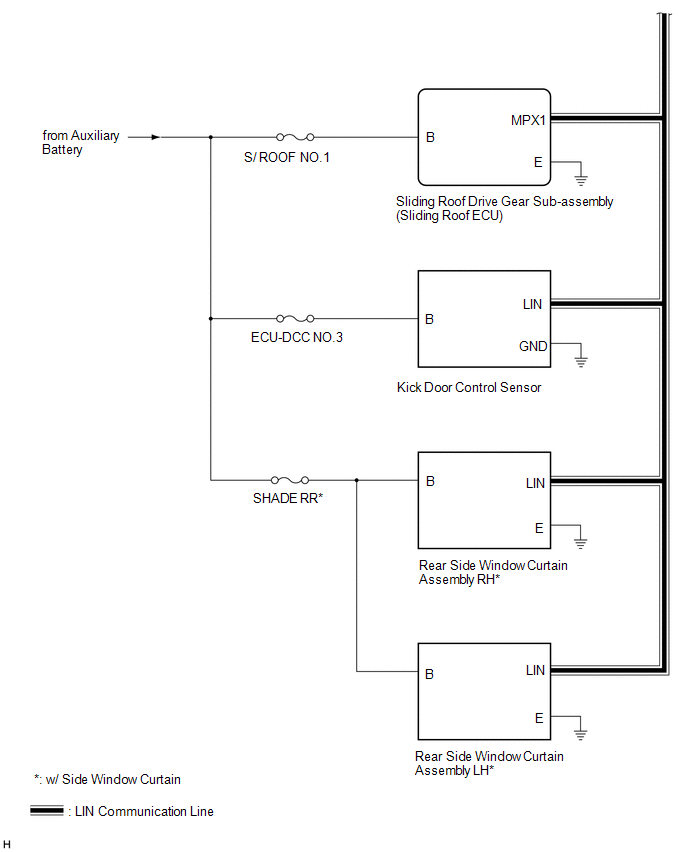

    GTY1233071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CERTIFICATION BUS LINES

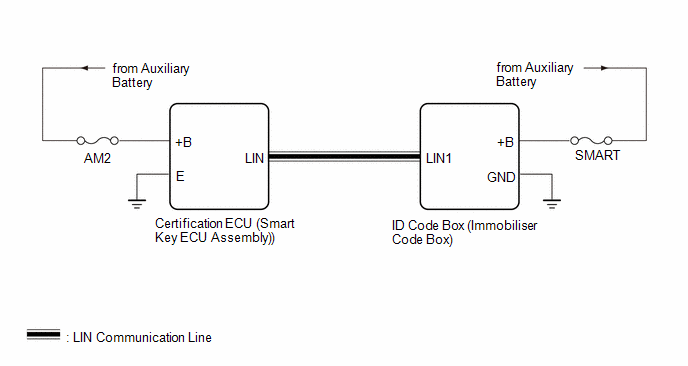

    GTY1129555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. WIPER AND ALARM BUS LINS

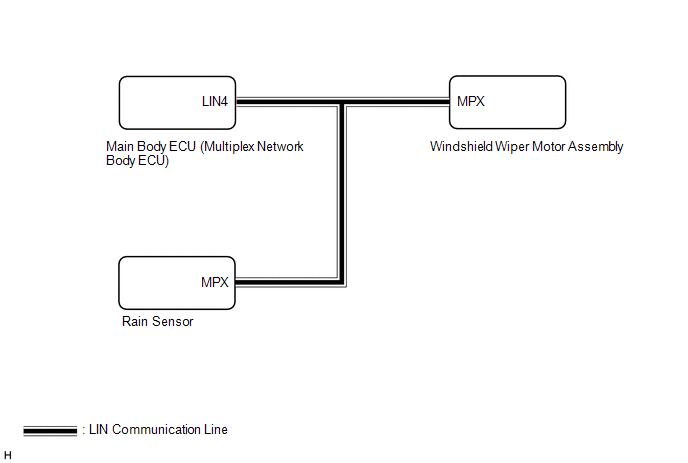

    GTY1236737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
