Parts Location [10/2023 - ]: Illustration
WARNING: This page is about a different car, the 2024 Lexus LS 500h. However, it is still accessible from the selected car via links, so may be relevant.

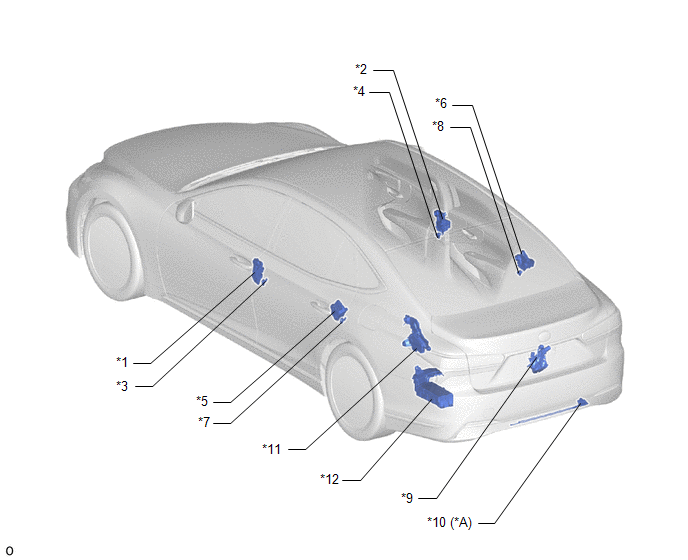

| *A | w/ Hands Free Power Trunk Lid | - | - |
| *1 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *2 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *5 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *6 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *9 | LUGGAGE DOOR CLOSER ASSEMBLY | *10 | KICK DOOR CONTROL SENSOR |
| *11 | LUGGAGE CLOSER MOTOR ASSEMBLY | *12 | NO. 2 LUGGAGE ROOM RELAY BLOCK - LUG-IG1 NO. 4 FUSE |

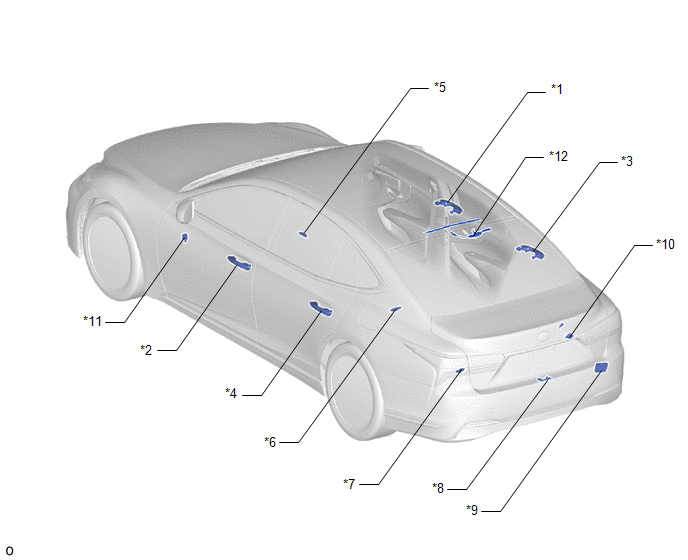

| *1 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
*2 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
| *3 | REAR DOOR OUTSIDE HANDLE ASSEMBLY RH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
*4 | REAR DOOR OUTSIDE HANDLE ASSEMBLY LH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
| *5 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) | *6 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) |
| *7 | NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT) | *8 | ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT) |
| *9 | ELECTRICAL KEY AND TIRE PRESSURE MONITORING SYSTEM RECIEVER ASSEMBLY | *10 | LUGGAGE ELECTRICAL KEY SWITCH |
| *11 | WIRELESS DOOR LOCK BUZZER | *12 | ROOF HEADER ELECTRICAL KEY ANTENNA |
