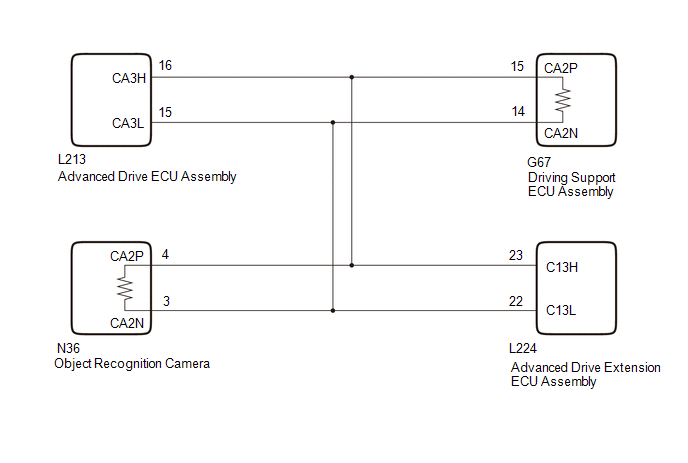

DTC U114B-87: Lost Communication with Image Processing Module "A" (ch2) Missing Message [11/2021 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2024 Lexus LS 500h, 2023 Lexus LS 500h, and 2022 Lexus LS 500h. However, it is still accessible from the selected car via links, so may be relevant.
