Parts Location [10/2023 - ]: Illustration
WARNING: This page is about a different car, the 2024 Lexus LS 500h. However, it is still accessible from the selected car via links, so may be relevant.

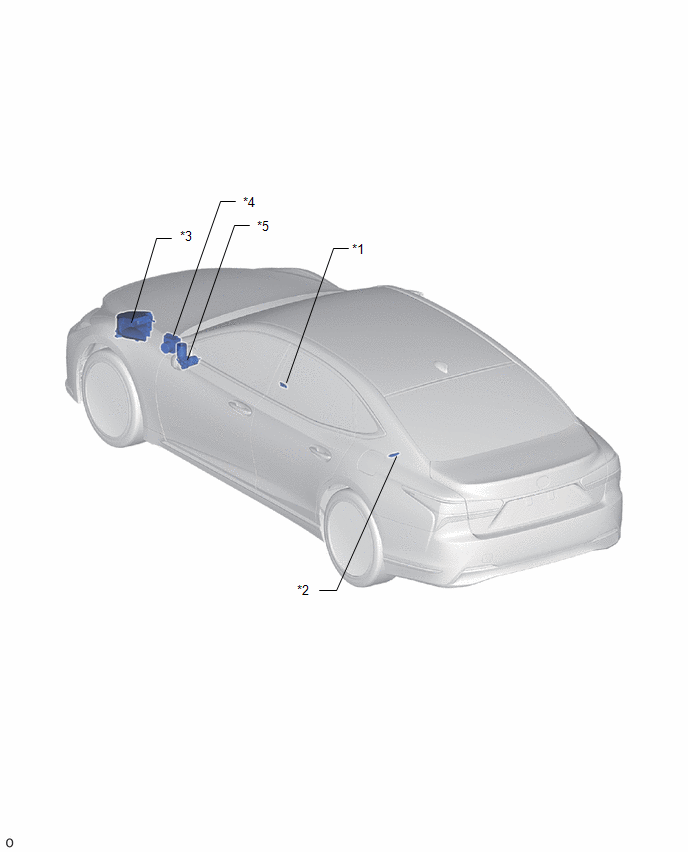

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) |
*2 |
NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) |
| *3 |
NO. 1 ENGINE ROOM RELAY BLOCK
- - IGP NO. 1 RELAY
|
*4 |
BRAKE ACTUATOR ASSEMBLY (NO. 2 SKID CONTROL ECU) |
| *5 |
BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY (NO. 1 SKID CONTROL ECU) |
- |
- |

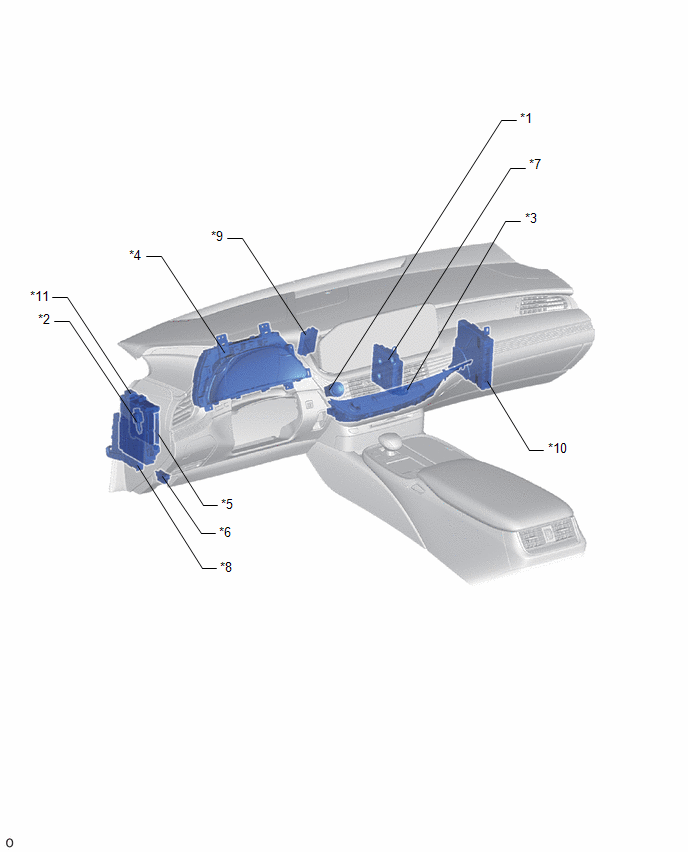

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
POWER SWITCH |
*2 |
STOP LIGHT SWITCH ASSEMBLY |
| *3 |
SECURITY INDICATOR LIGHT (AIR CONDITIONING CONTROL ASSEMBLY) |
*4 |
COMBINATION METER ASSEMBLY |
| *5 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*6 |
DLC3 |
| *7 |
SHIFT CONTROL ECU |
*8 |
CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *9 |
ID CODE BOX (IMMOBILISER CODE ECU) |
*10 |
HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *11 |
POWER DISTRIBUTION BOX ASSEMBLY
- - STOP FUSE
- - AM2 FUSE
- - STRG LOCK FUSE
- - ECU-ACC FUSE
- - ECU-IGR NO. 1 FUSE
- - ECU-IGR NO. 2 FUSE
- - STOP FUSE
- - IGR NO. 1 RELAY
- - IGR NO. 2 RELAY
- - ACC RELAY
|
- |
- |
