Components [09/2015 - ]

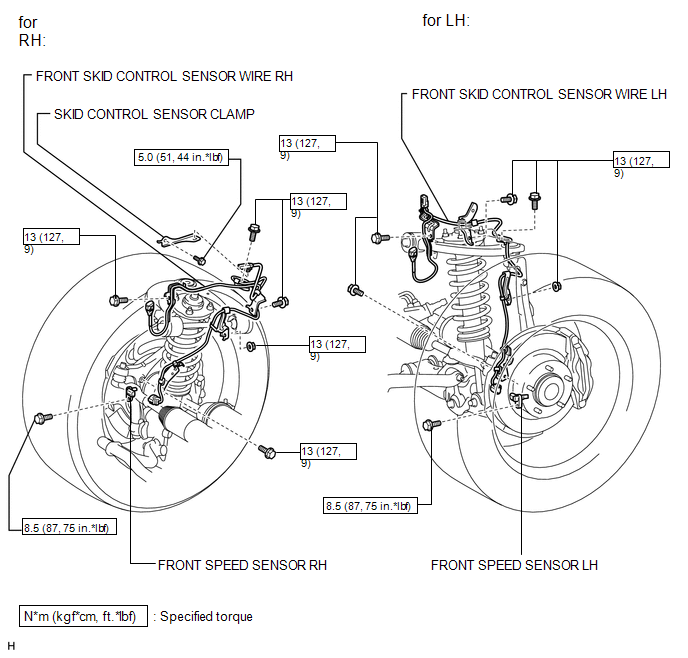

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications
GTY624252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
