Disassembly [09/2015 - ]: Procedure

See step  2

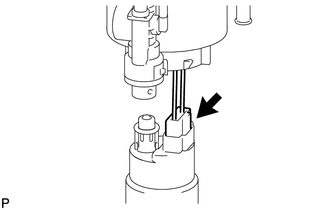

1. Disconnect the fuel pump connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

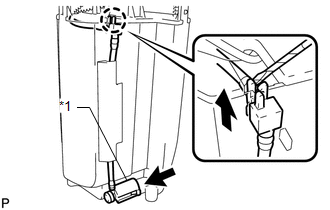

2. Disconnect the jet pump from the sub-tank.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1

   Jet Pump

3. Using a small screwdriver, detach the claw from the sub-tank.

   HINT:

   Tape the screwdriver tip before use.

4. Detach the tube from the 2 clamps on the sub-tank.

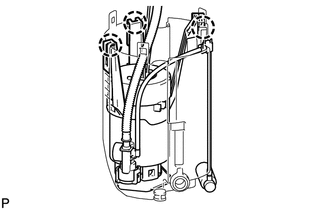

5. Using a screwdriver, detach the 3 claws from the claw holes.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not damage the fuel sub-tank.

   HINT:

   Tape the screwdriver tip before use.

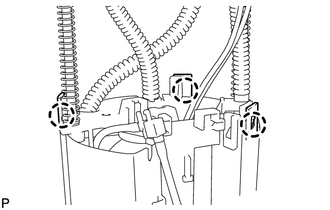

6. Using a screwdriver, detach the 3 claws from the claw holes and remove the No. 1 fuel sub-tank.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not damage the fuel sub-tank.

   HINT:

   Tape the screwdriver tip before use.

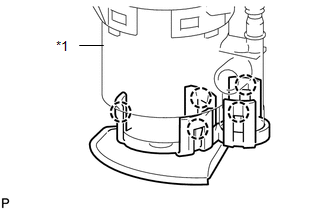

1. Using a screwdriver, detach the 5 claws from the claw holes and disconnect the fuel pump from the fuel filter case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Fuel Filter Case

   HINT:

   Tape the screwdriver tip before use.

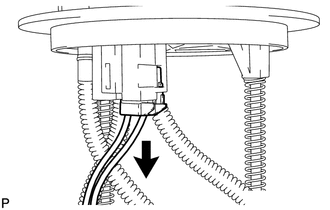

2. Disconnect the fuel pump wire harness connector from the fuel pump to remove it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

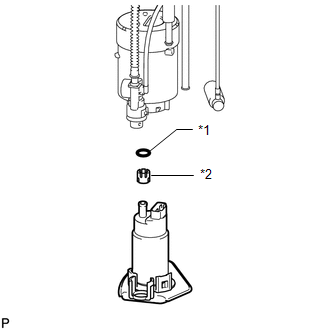

3. Remove the O-ring and spacer from the fuel pump.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	O-ring
   *2	Spacer

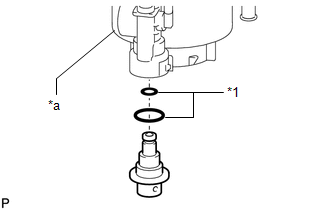

1. Remove the fuel main valve from the fuel filter case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	O-ring
   *a	Fuel Filter Case

2. Remove the 2 O-rings from the fuel main valve.

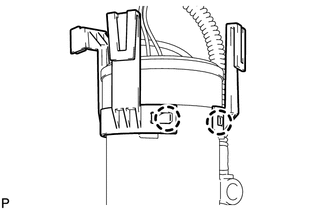

1. Detach the 2 claws from the claw holes to remove the fuel suction support.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
