Parts Location [09/2015 - ]: Illustration

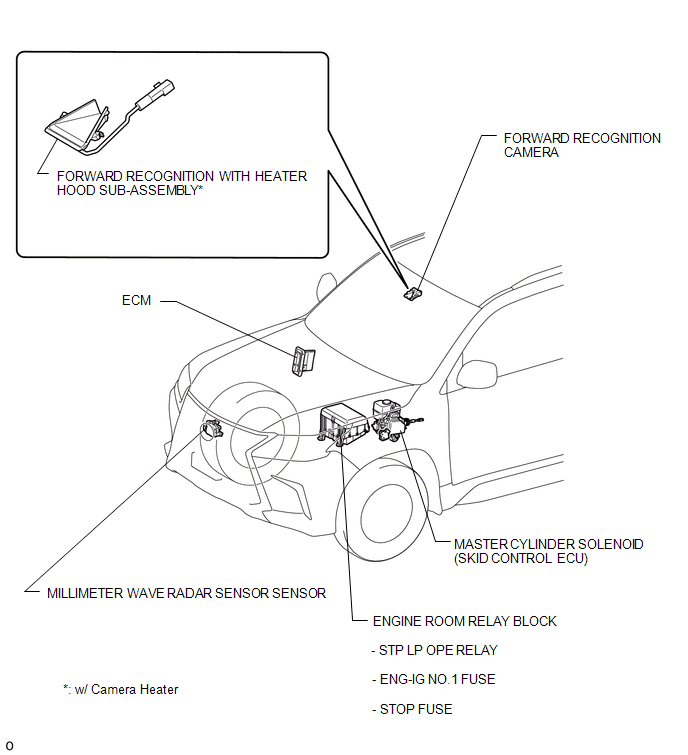

GTY825922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

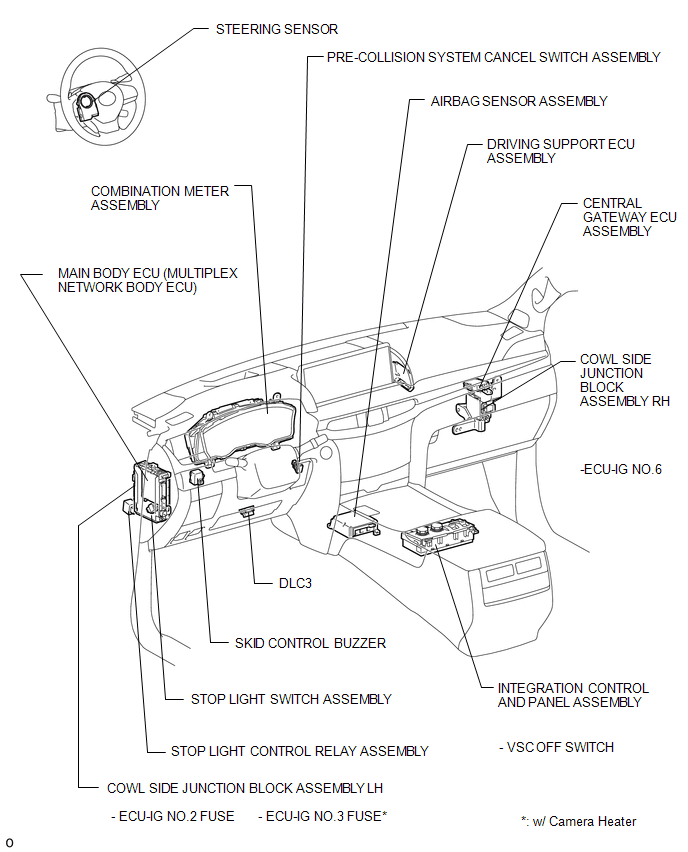

GTY956382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
