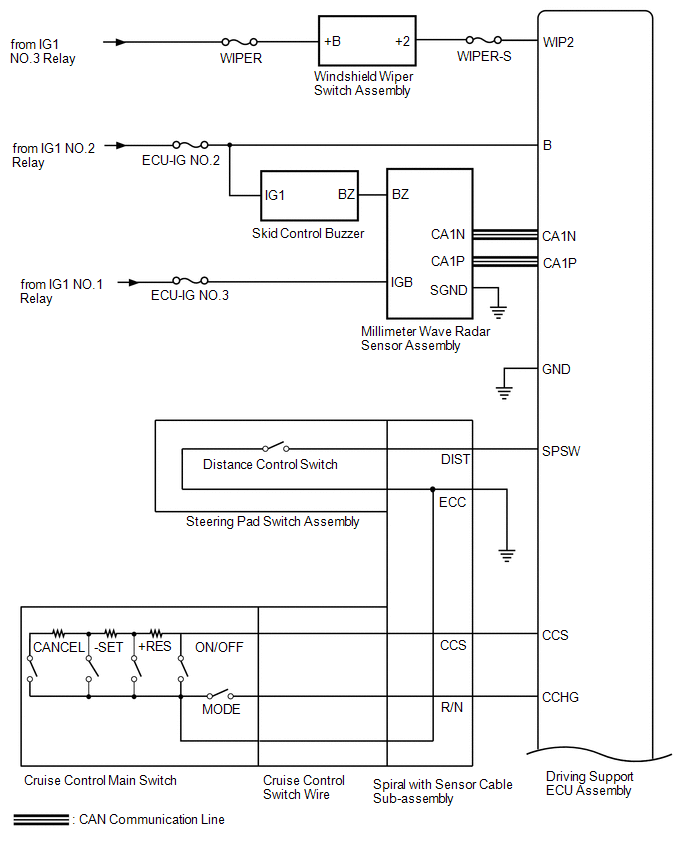

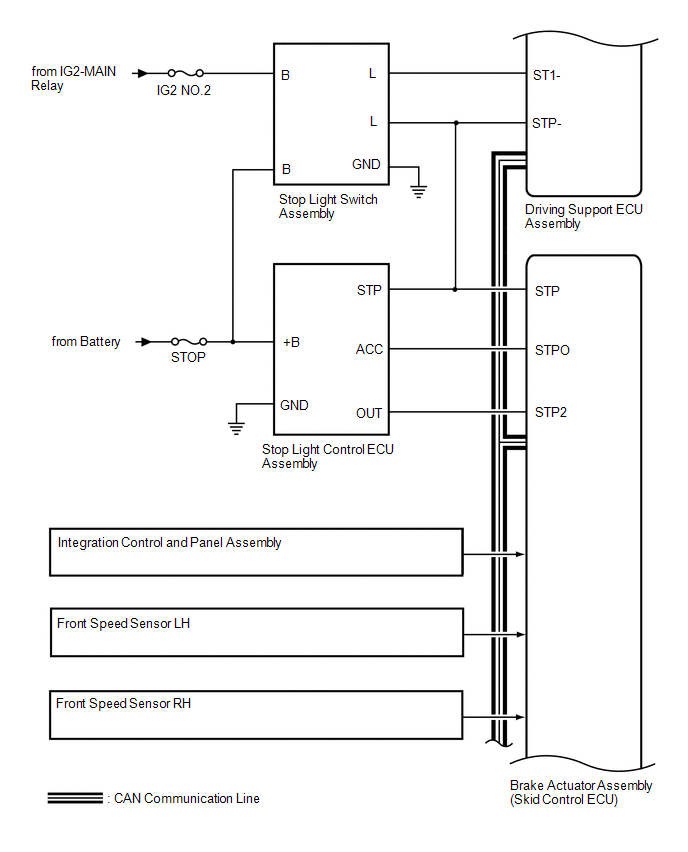

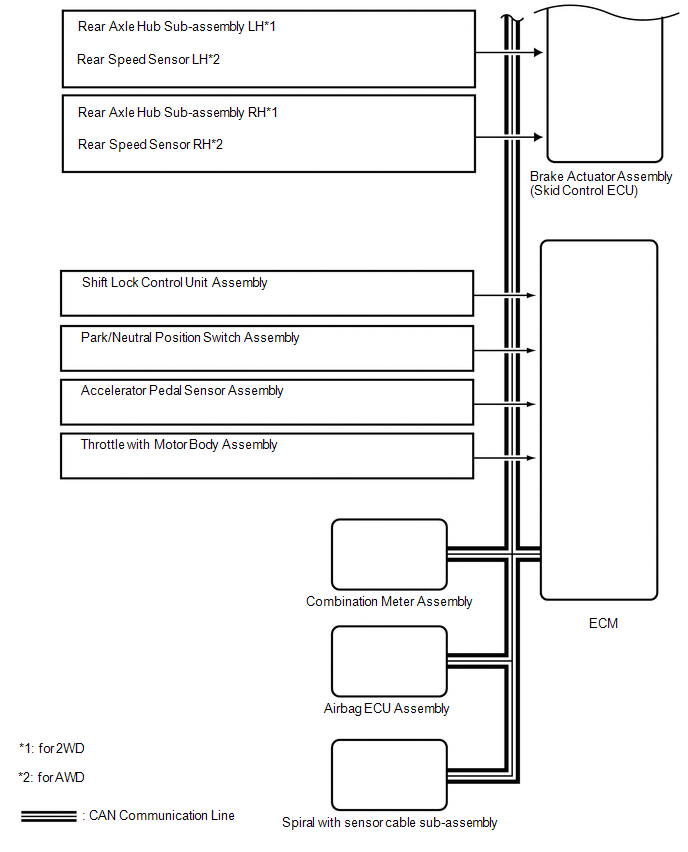

| ECM |
Driving Support ECU Assembly |
- Actual drive force signal
- Accelerator pedal idle position signal
- Accelerator pedal position signal
- Brake demand response signal
- Shift state signal (D and R)
|
CAN |
| Driving Support ECU Assembly |
ECM |
- Target drive force signal
|
CAN |
| Brake Actuator Assembly (Skid Control ECU) |
Driving Support ECU Assembly |
- Wheel speed signal
- Speed sensor power drop signal
- Speed sensor condition signal
- Airbag ECU assembly zero point signal
- Airbag ECU assembly zero point error signal
- Stop light switch control relay malfunction signal
- Cruise control cancel demand signal
|
CAN |
| Driving Support ECU Assembly |
Brake Actuator Assembly (Skid Control ECU) |
- Vehicle following distance signal
|
CAN |
| Driving Support ECU Assembly |
Combination Meter Assembly |
- Vehicle approach warning signal
- Forward vehicle detection signal
- Cruise control diagnosis signal
- Vehicle-to-vehicle distance signal
- Dirt present on millimeter wave radar sensor assembly signal
- Bad weather detection signal
- Low speed cancel buzzer request signal
- Vehicle-to-vehicle distance control standby signal
- Constant speed cruise signal
- Cruise indicator light operation signal
- Cruise control warning signal
- Dynamic radar cruise warning signal
- Cruise control vehicle speed signal
- Cruise control SET indicator light operation signal
|
CAN |
| Spiral with Sensor Cable Sub-assembly |
Driving Support ECU Assembly |
- Sensor malfunction signal
- Steering angle signal
- Sensor zero point signal
|
CAN |
| Main Body ECU (Multiplex Network Body ECU) |
Driving Support ECU Assembly |
- Country specification information signal
|
CAN |
| Airbag ECU Assembly |
Driving Support ECU Assembly |
- Airbag ECU assembly signal
- Airbag ECU assembly malfunction signal
- Airbag ECU assembly voltage signal
|
CAN |
