Components [10/2014 - 09/2017]

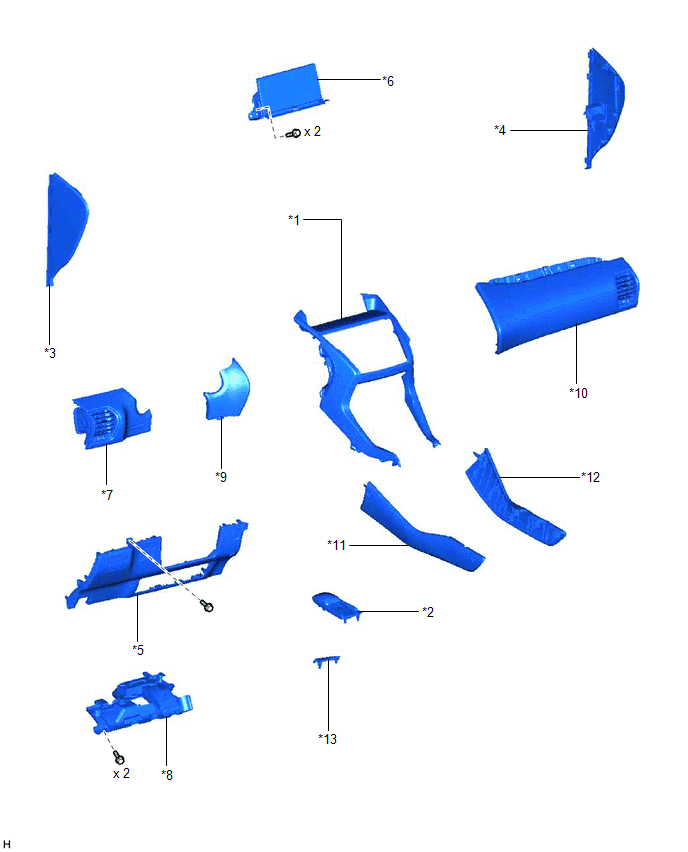

Fig 1: Multi-Display Replacement Components (1 Of 3) [10/2014 - 09/2017]
GTY516073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY *2 CONSOLE ARMREST ASSEMBLY
*3 INSTRUMENT SIDE PANEL LH *4 INSTRUMENT SIDE PANEL RH
*5 LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL *6 MULTI-DISPLAY ASSEMBLY WITH BRACKET
*7 NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY *8 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*9 NO. 1 SWITCH HOLE BASE *10 NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
*11 UPPER NO. 1 CONSOLE PANEL GARNISH *12 UPPER NO. 2 CONSOLE PANEL GARNISH
*13 UPPER REAR CONSOLE PANEL - -

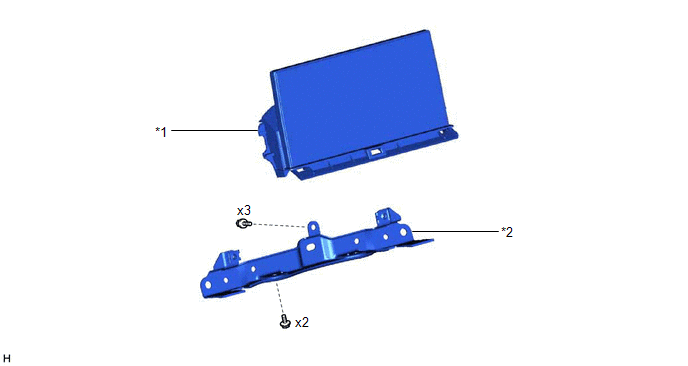

Fig 2: Multi-Display Replacement Components (2 Of 3) [10/2014 - 09/2017]
GTY518706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MULTI-DISPLAY ASSEMBLY *2 MULTI-DISPLAY CONTROLLER BRACKET A

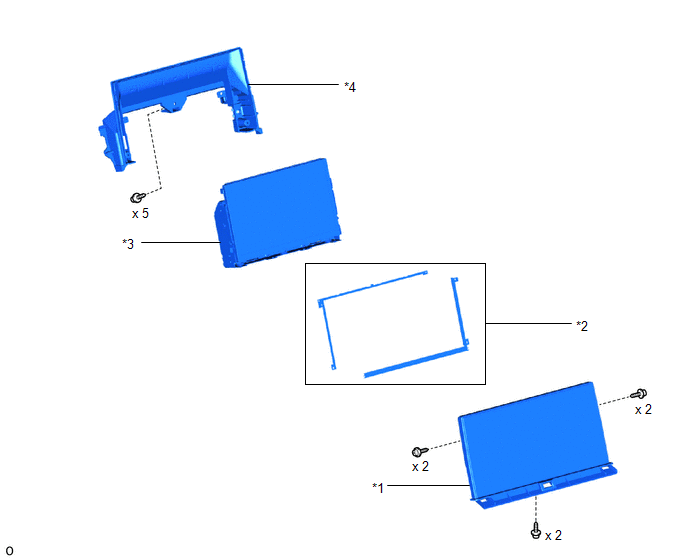

Fig 3: Multi-Display Replacement Components (3 Of 3) [10/2014 - 09/2017]
GTY677087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT PANEL ASSEMBLY *2 CUSHION SEAT
*3 DISPLAY *4 REAR PANEL
