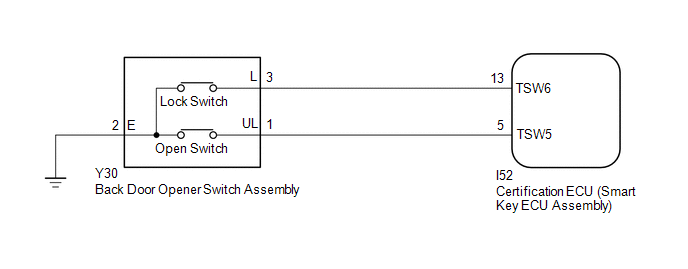

Back Door Entry Lock Function does not Operate [01/2019 - ]: Wiring Diagram

GTY949087

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
