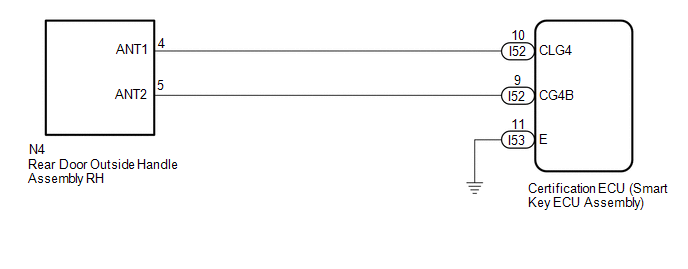

Rear Door RH Entry Lock Function does not Operate [10/2014 - ]: Wiring Diagram

GTY497354

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
