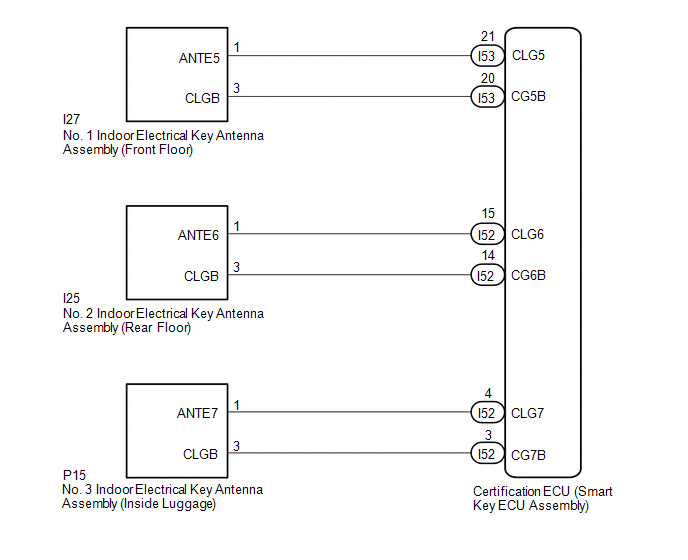

Room Oscillator does not Recognize Key [10/2014 - ]: Wiring Diagram

GTY503742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
