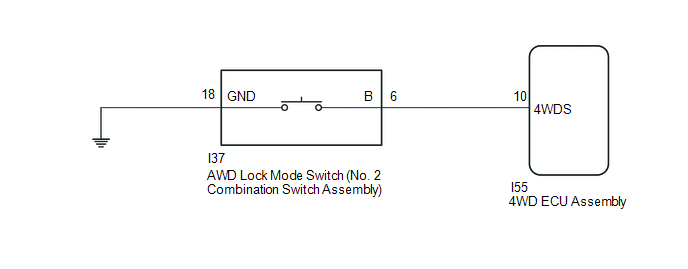

AWD Control Switch Circuit [09/2017 - ]: Wiring Diagram

GTY781817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
