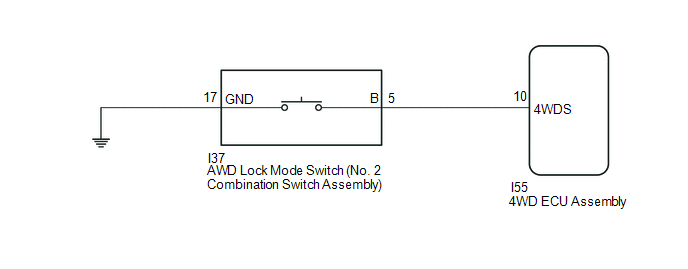

AWD Control Switch Circuit [10/2014 - 09/2017]: Wiring Diagram

GTY501728

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
