AWD Warning Light Remains ON [10/2014 - ]: Procedure
- CHECK FOR DTC (CAN COMMUNICATION SYSTEM AND DYNAMIC TORQUE CONTROL AWD SYSTEM)
- Check if the CAN communication system DTC is output.
Refer to DIAGNOSIS SYSTEM [10/2014 - 09/2017] , or refer to DIAGNOSIS SYSTEM [09/2017 - 05/2018] , or refer to DIAGNOSIS SYSTEM [05/2018 - 05/2019] , or refer to DIAGNOSIS SYSTEM [05/2019 - 10/2019] , or refer to DIAGNOSIS SYSTEM [10/2019 - 07/2020] , or refer to DIAGNOSIS SYSTEM [07/2020 - ]
- Check if the dynamic torque control AWD system DTC is output.
Refer to DTC CHECK / CLEAR [10/2014 - 05/2019] , or refer to DTC CHECK / CLEAR [05/2019 - ]
Chassis > Four Wheel Drive > Trouble Codes
Result
Result Proceed to Neither CAN communication system DTC nor dynamic control AWD system DTC is output A CAN communication DTC is output B Dynamic torque control AWD system DTC is output C HINT:
When DTCs indicating a CAN communication system malfunction are output, repair the CAN communication system before repairing each corresponding sensor.
Result:
B
GO TO CAN COMMUNICATION (HOW TO PROCEED WITH TROUBLESHOOTING). Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2014 - 09/2017] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2017 - 05/2019] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [05/2019 - ]
Result:
C
REPAIR CIRCUIT INDICATED BY OUTPUT CODE (DYNAMIC TORQUE CONTROL 4WD SYSTEM). Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2014 - 05/2019] , or refer to DIAGNOSTIC TROUBLE CODE CHART [05/2019 - ]
Result:
A
See step 2
- Check if the CAN communication system DTC is output.
- CHECK 4WD ECU ASSEMBLY
- Check if the 4WD ECU assembly connector is securely connected.
OK
The connector is securely connected.
Result
Proceed to OK NG
Result:
NG
CONNECT CONNECTOR TO ECU CORRECTLY
Result:
OK
See step 3
- Check if the 4WD ECU assembly connector is securely connected.
- INSPECT BATTERY
Result:
NG
CHECK CHARGING SYSTEM. Refer to ON-VEHICLE INSPECTION [10/2014 - ]
Result:
OK
See step 4
- CHECK HARNESS AND CONNECTOR (IG1 TERMINAL)
- Disconnect the I55 4WD ECU assembly connector.

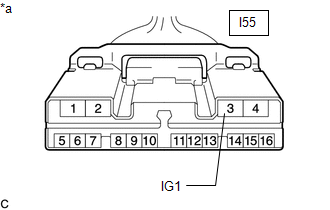

*a Front view of wire harness connector
(to 4WD ECU Assembly) - Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition I55-3 (IG1) - Body ground Engine switch on (IG) 11 to 14 V Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 5
- Disconnect the I55 4WD ECU assembly connector.
- CHECK HARNESS AND CONNECTOR (GND TERMINAL)
- Turn the engine switch off.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

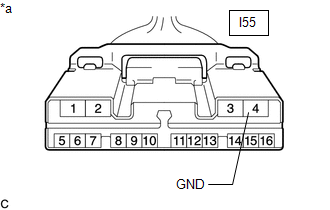

Tester Connection Condition Specified Condition I55-4 (GND) - Body ground Always Below 1 Ω *a Front view of wire harness connector
(to 4WD ECU Assembly)Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 6
- READ VALUE USING TECHSTREAM (4WD WARNING LIGHT)
- Reconnect the I55 4WD ECU assembly connector.
- Turn the engine switch off.
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Chassis / Four Wheel Drive / Data List.
- According to the display on the Techstream, read the Data List.
Chassis > Four Wheel Drive > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note 4WD Warning Light AWD warning (multi-information display) OFF or ON OFF: Warning off
ON: Warning on- Chassis > Four Wheel Drive > Data List
Tester Display 4WD Warning Light - Check the Techstream display condition of the 4WD Warning Light.
Result
Proceed to Display of the Data List remains OFF Display of the Data List remains ON
Result:
Display of the Data List remains OFF
GO TO METER / GAUGE SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING). Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2014 - ]
Result:
Display of the Data List remains ON
REPLACE 4WD ECU ASSEMBLY. Refer to REMOVAL [10/2014 - 05/2019] , or refer to REMOVAL [05/2019 - ]
