Operation Check [10/2014 - 09/2017]
- INPUT SIGNAL CHECK

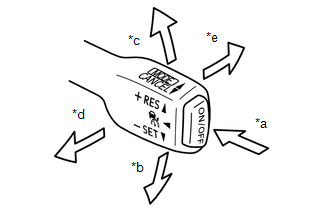

*a ON/OFF *b -SET *c +RES *d CANCEL *e MODE - Connect the Techstream to the DLC3.
- Check the cruise control main switch using the Data List function of the Techstream (ON/OFF, -SET, +RES, CANCEL and MODE).
- INSPECT MODE SWITCH

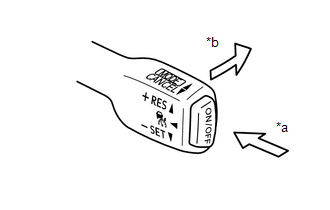

*a ON/OFF *b MODE - Turn the power switch on (IG).
- Turn the cruise control system on using the cruise control main switch (ON/OFF). Then push the cruise control main switch to MODE for 1 second or more to switch to the constant speed control mode.
- Check that the cruise control indicator light (vehicle-to-vehicle distance control mode) goes off and the cruise control indicator light (constant speed control mode) illuminates.

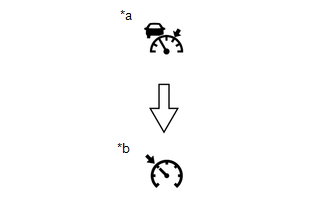

*a Cruise Control Indicator Light
(Vehicle-to-vehicle distance control mode)*b Cruise Control Indicator Light
(Constant speed control mode)NOTE:Do not push any other switches before pushing the cruise control main switch to MODE. If another switch is pushed, turn the cruise control system off and repeat the procedure above.
HINT:
If a malfunction is detected, turn the power switch off and repeat the procedure above.
- INSPECT STEERING PAD SWITCH ASSEMBLY
- Turn the power switch on (IG).
- Turn the cruise control system on using the cruise control main switch (ON/OFF).
- Press the steering pad switch assembly (distance control switch).
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

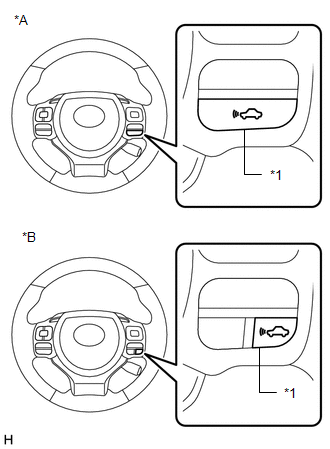

*A w/o Lane Departure Alert System *B w/ Lane Departure Alert System *1 Distance Control Switch - Check that the indication of the vehicle-to-vehicle distance, which is shown on the multi-information display in the combination meter assembly changes from long to middle to short in that order.

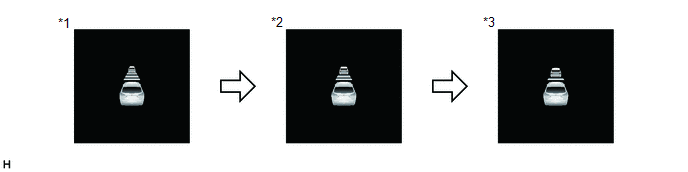

*1 Long *2 Middle *3 Short - - HINT:
Long is automatically selected each time the power switch is on (READY).
