System Diagram [09/2017 - 10/2019]

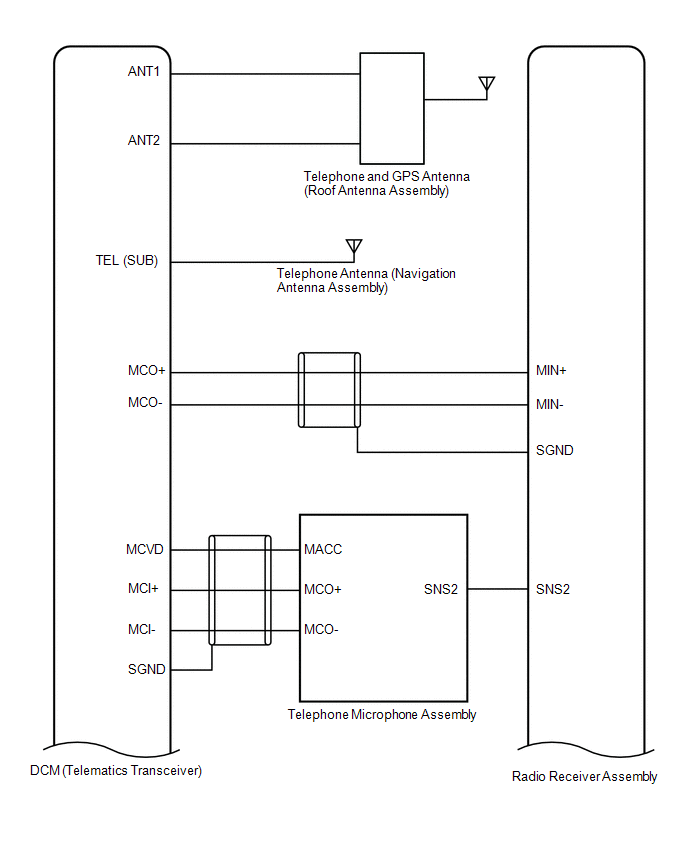

Fig 1: Lexus Enform System Wiring Diagram (1 Of 5)
GTY810258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

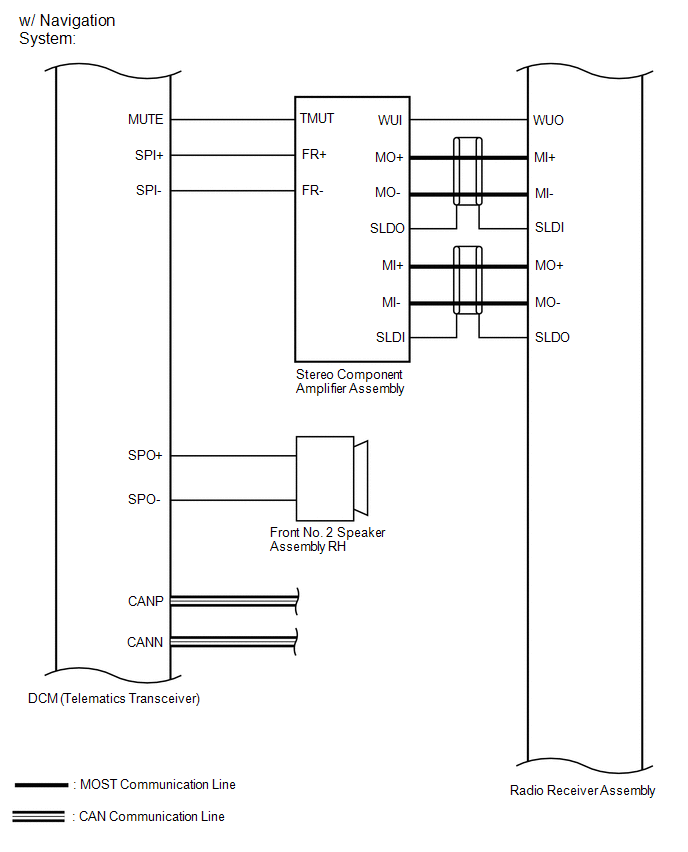

Fig 2: Lexus Enform System Wiring Diagram (2 Of 5)
GTY800956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

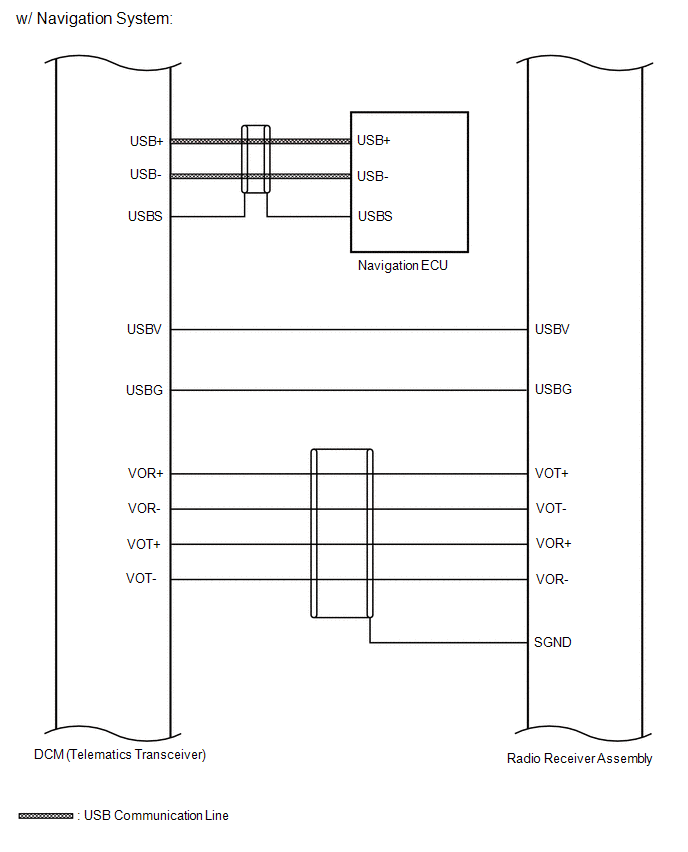

Fig 3: Lexus Enform System Wiring Diagram (3 Of 5)
GTY832506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

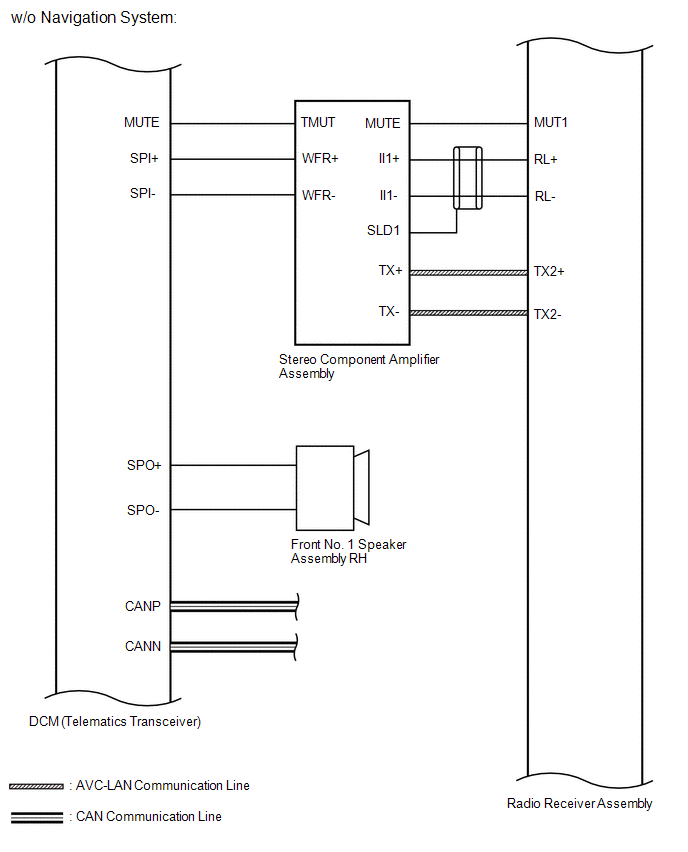

Fig 4: Lexus Enform System Wiring Diagram (4 Of 5)
GTY805278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

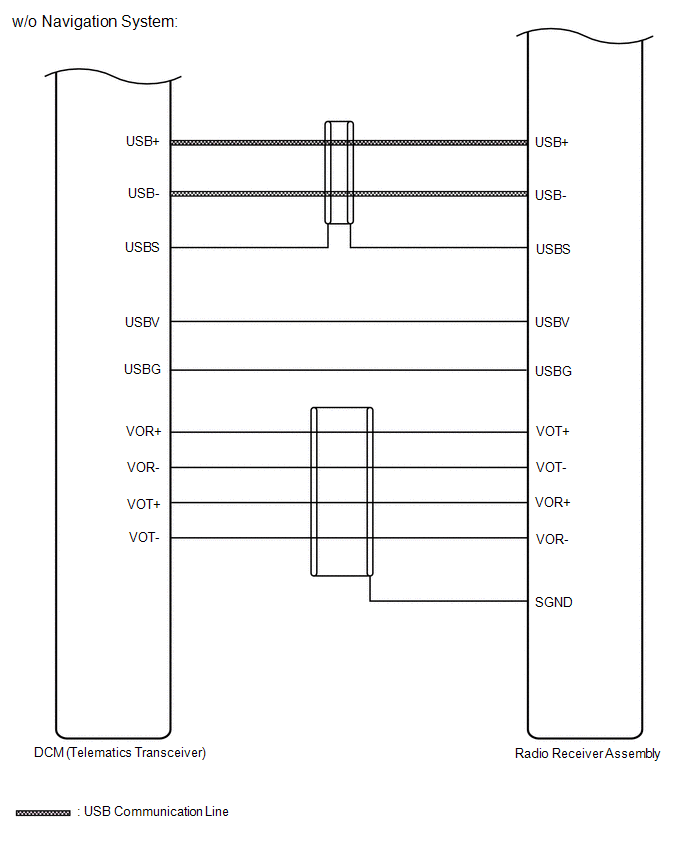

Fig 5: Lexus Enform System Wiring Diagram (5 Of 5)
GTY826008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
