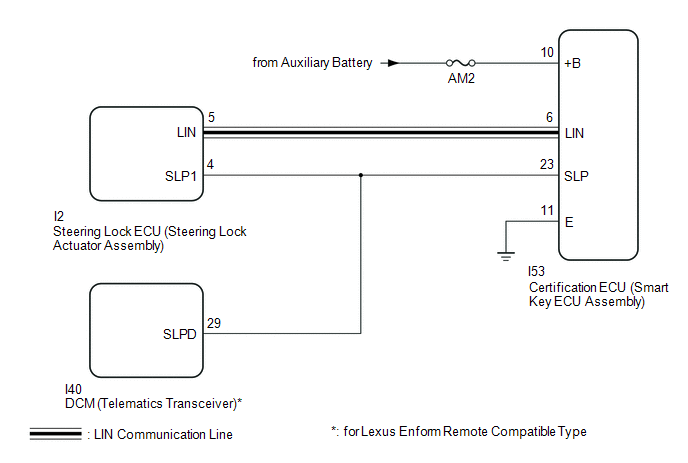

DTC B2285: Steering Lock Position Signal Circuit Malfunction [10/2014 - 10/2019]: Wiring Diagram

GTY508271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
