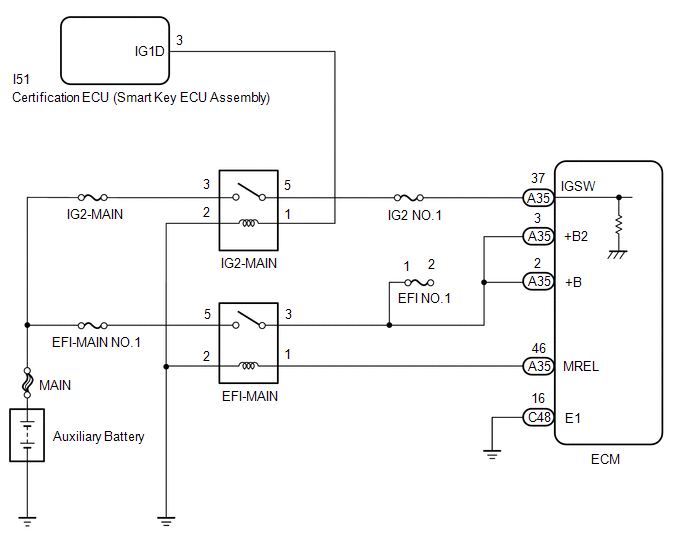

ECM Power Source Circuit [10/2014 - ]: Wiring Diagram

GTY948263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
