Installation [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CRANKSHAFT POSITION SENSOR

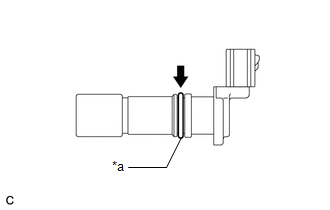

Apply a light coat of engine oil to the O-ring of the crankshaft position sensor.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

O-ring

NOTE:

If reusing the crankshaft position sensor, be sure to inspect the O-ring.

Install the crankshaft position sensor to the cylinder block sub-assembly with the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
NOTE:
- If the crankshaft position sensor has been struck or dropped, replace it.
- Make sure that the O-ring is not cracked or does not move out of place during installation.
Connect the crankshaft position sensor connector.

INSTALL COMPRESSOR AND MAGNETIC CLUTCH
- for 2WD:
  Refer to INSTALLATION [09/2014 - 10/2015] , or refer to INSTALLATION [10/2015 - 11/2017]
- for AWD:
  Refer to INSTALLATION [09/2014 - 11/2017]
