Installation [09/2014 - 11/2017]: Procedure
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL ENGINE COOLANT TEMPERATURE SENSOR
HINT:
Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.
Refer to INITIALIZATION [09/2014 - 11/2017]
- Install a new gasket to the engine coolant temperature sensor.

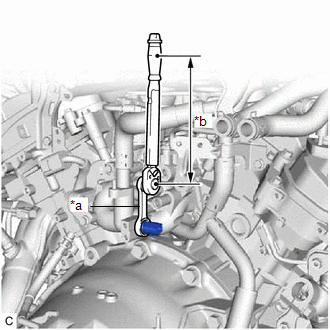

- Using a 19 mm ball joint lock nut wrench, install the engine coolant temperature sensor to the rear water by-pass joint.
*a 19 mm Ball Joint Lock Nut Wrench *b Torque Wrench Fulcrum Length Specified tightening torque
Torque: 19.6 N.m (200 kgf/cm, 14 ft.lbf)
NOTE:If the engine coolant temperature sensor has been struck or dropped, replace it.
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [09/2014 - 11/2017]
- When using a 19 mm ball joint lock nut wrench (fulcrum length of 150 mm (5.91 in.)) + torque wrench (fulcrum length of 155 mm (6.1 in.)):
10 N.m (102 kgf/cm, 7 ft.lbf)
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
- Connect the engine coolant temperature sensor connector.
- CONNECT WATER BY-PASS HOSE
- Connect the water by-pass hose to the rear water by-pass joint and slide the clip to secure it.
- INSTALL FUEL PRESSURE SENSOR
Refer to INSTALLATION [09/2014 - 11/2017]
- PERFORM INITIALIZATION
- Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.
Refer to INITIALIZATION [09/2014 - 11/2017]
- Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.
