Installation [10/2015 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL ENGINE COOLANT TEMPERATURE SENSOR
HINT:
Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.
Refer to INITIALIZATION [10/2015 - 10/2018] , or refer to INITIALIZATION [10/2018 - 11/2019] , or refer to INITIALIZATION [11/2019 - ]

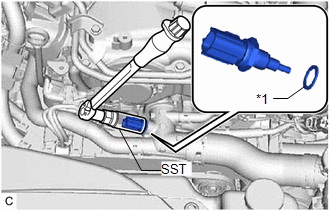

- Install a new gasket to the engine coolant temperature sensor.
*1 Gasket - Using SST, install the engine coolant temperature sensor to water outlet sub-assembly.
- SST: 09817-33191
NOTE:If the engine coolant temperature sensor has been struck or dropped, replace it.
Torque: 19.6 N*m (200 kgf*cm, 14 ft.*lbf)
- Connect the engine coolant temperature sensor connector.
- Install a new gasket to the engine coolant temperature sensor.
- INSTALL AIR CLEANER HOSE ASSEMBLY
Refer to PROCEDURE - Step 3
- INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 80
- ADD ENGINE COOLANT
Refer to PROCEDURE - Step 3
- INSPECT FOR COOLANT LEAK
Refer to PROCEDURE - Step 4
- INSTALL CENTER NO. 4 ENGINE UNDER COVER
Refer to PROCEDURE - Step 5
- PERFORM INITIALIZATION
- Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.
Refer to INITIALIZATION [10/2015 - 10/2018] , or refer to INITIALIZATION [10/2018 - 11/2019] , or refer to INITIALIZATION [11/2019 - ]
- Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.
