Installation [10/2015 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL KNOCK SENSOR
HINT:
Perform "Inspection After Repair" after replacing the knock sensor.
Refer to INITIALIZATION [10/2015 - 10/2018] , or refer to INITIALIZATION [10/2018 - 11/2019] , or refer to INITIALIZATION [11/2019 - ]

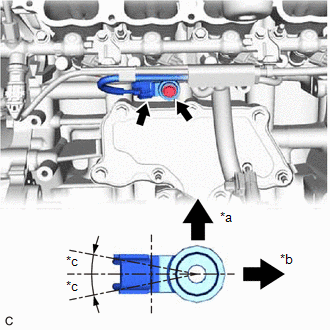

- Install the knock sensor to the cylinder block sub-assembly with the bolt so that the knock sensor installation position is as shown in the illustration.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
*a Up *b Front of Engine *c 10° NOTE:- If the knock sensor has been struck or dropped, replace it.
- Make sure that the knock sensor is installed in the correct position.
- Connect the knock sensor connector.
- Install the knock sensor to the cylinder block sub-assembly with the bolt so that the knock sensor installation position is as shown in the illustration.
- INSTALL INTAKE MANIFOLD
Refer to INSTALLATION [10/2015 - ]
- PERFORM INITIALIZATION
- Perform "Inspection After Repair" after replacing the knock sensor.
Refer to INITIALIZATION [10/2015 - 10/2018] , or refer to INITIALIZATION [10/2018 - 11/2019] , or refer to INITIALIZATION [11/2019 - ]
- Perform "Inspection After Repair" after replacing the knock sensor.
