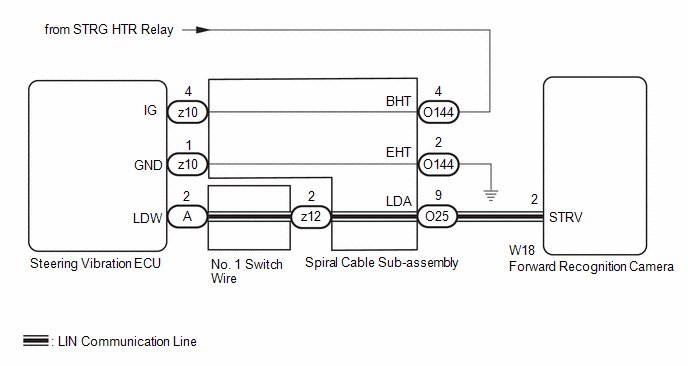

DTC C1A75-87: Steering Vibrator System Missing Message [01/2023 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2024 Lexus RC F and 2023 Lexus RC F. However, it is still accessible from the selected car via links, so may be relevant.
GTY1171644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
