DTC C1A05: Stop Light Switch Circuit [09/2014 - 11/2017]: Procedure

  1. CHECK TERMINAL VOLTAGE (POWER SOURCE OF STOP LIGHT SWITCH ASSEMBLY)
    1. Disconnect the A52 stop light switch assembly connector.

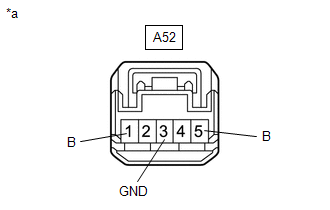

      GTY506406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Stop Light Switch Assembly)
    2. Measure the voltage and resistance according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A52-1 (B) - A52-3 (GND) Always 11 to 14 V
      A52-5 (B) - A52-3 (GND) Engine switch on (IG) 11 to 14 V

      Standard Resistance

      Tester Connection Condition Specified Condition
      A52-3 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - BATTERY AND BODY GROUND)

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (DRIVING SUPPORT ECU ASSEMBLY - STOP LIGHT SWITCH ASSEMBLY)
    1. Disconnect the Q1 driving support ECU assembly connector.
    2. Disconnect the A52 stop light switch assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q1-27 (STP-) - A52-2 (L) Always Below 1 Ω
      Q1-28 (ST1-) - A52-4 (L) Always Below 1 Ω
      Q1-27 (STP-) or A52-2 (L) - Body ground Always 10 kΩ or higher
      Q1-28 (ST1-) or A52-4 (L) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. REPLACE STOP LIGHT SWITCH ASSEMBLY
    1. Replace the stop light switch assembly.

      Refer to REMOVAL [09/2014 - ]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  4

  4. CHECK FOR DTCs (RADAR CRUISE)
    1. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [09/2014 - 11/2017]

      Powertrain > Radar Cruise > Clear DTCs

    2. Make sure that the DTC detection conditions are met.

      HINT:

      If the detection conditions are not met, the system cannot detect the malfunction.

    3. Check for DTCs.

      Refer to DTC CHECK / CLEAR [09/2014 - 11/2017]

      Powertrain > Radar Cruise > Trouble Codes

      NOTE:

      When replacing the driving support ECU assembly, always replace it with a new one. If a driving support ECU assembly which was installed to another vehicle is used, the information stored in the driving support ECU assembly will not match the information from the vehicle. As a result, a DTC may be stored.

      Result

      Result Proceed to
      DTC C1A05 is not output A
      DTC C1A05 is output B

    Result:

    END (STOP LIGHT SWITCH ASSEMBLY WAS DEFECTIVE)

    Result:

    REPLACE DRIVING SUPPORT ECU ASSEMBLY. Refer to  REMOVAL [09/2014 - 01/2023]
