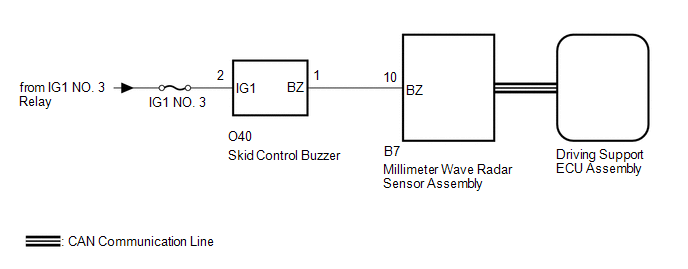

DTC C1A4A: Skid Control Buzzer Circuit [09/2014 - 11/2017]: Wiring Diagram

GTY509736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
