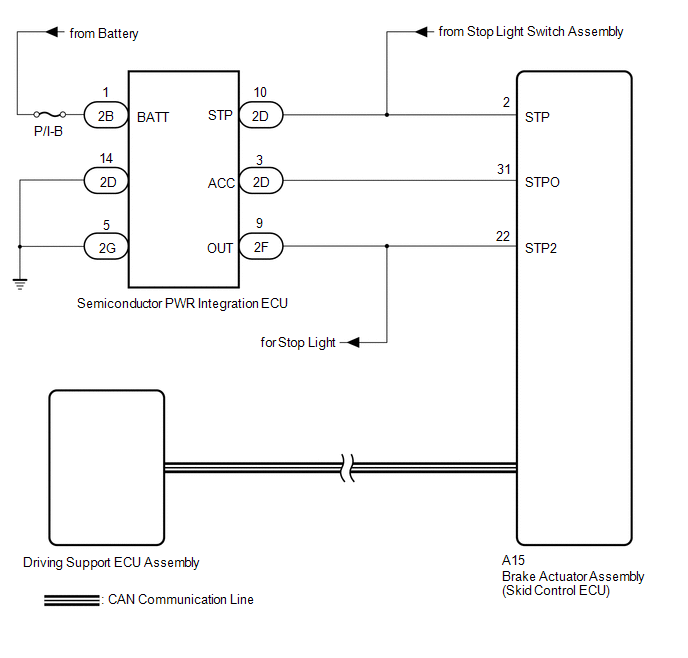

DTC C1A4B: Stop Light Relay Circuit [09/2014 - 11/2017]: Wiring Diagram

GTY512097

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
