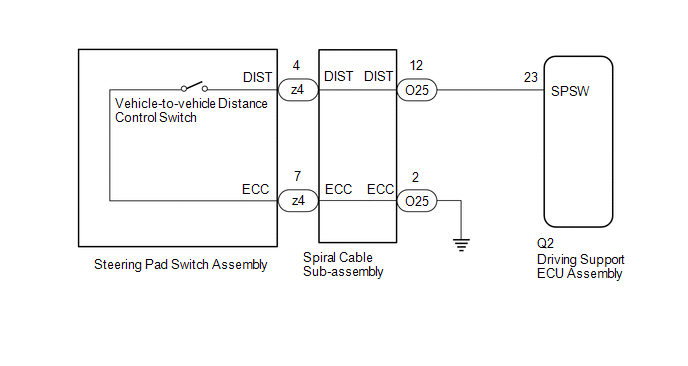

Distance Control Switch Circuit [11/2017 - 01/2023]: Wiring Diagram

GTY832280

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
