Wiper Signal Circuit [09/2014 - 11/2017]: Procedure
- CHECK WIPER AND WASHER SYSTEM
- Check that the wiper and washer system operates normally.
OK
Wiper and washer system operates normally
Result
Proceed to OK NG
Result:
NG
GO TO WIPER AND WASHER SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2014 - 03/2019]
Result:
OK
See step 2
- Check that the wiper and washer system operates normally.
- CHECK TERMINAL VOLTAGE (POWER SOURCE OF DRIVING SUPPORT ECU ASSEMBLY AND WIP2 TERMINAL)
- Disconnect the Q1 driving support ECU assembly connector.

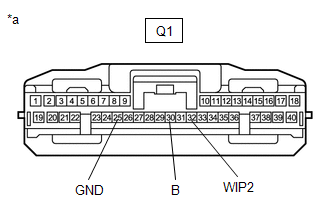

*a Front view of wire harness connector
(to Driving Support ECU Assembly) - Measure the voltage and resistance according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition Q1-30 (B) - Body ground Engine switch on (IG) 11 to 14 V Q1-30 (B) - Body ground Engine switch off Below 1 V Q1-32 (WIP2) - Body ground Engine switch on (IG), windshield wiper switch Hi 11 to 14 V Standard Resistance
Tester Connection Condition Specified Condition Q1-25 (GND) - Body ground Always Below 1 Ω Result
Proceed to OK NG
Result:
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [09/2014 - 11/2017]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (DRIVING SUPPORT ECU ASSEMBLY - BATTERY, BODY GROUND AND WINDSHIELD WIPER SWITCH ASSEMBLY)
- Disconnect the Q1 driving support ECU assembly connector.
