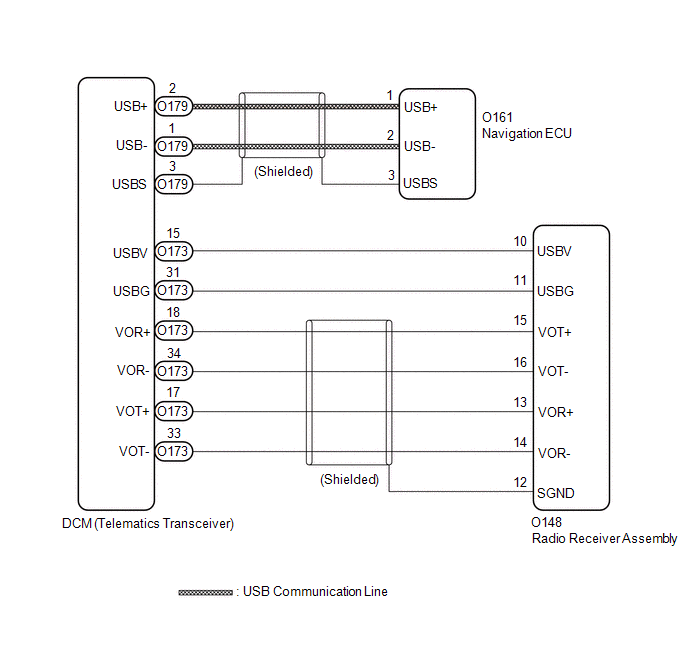

DCM Data Signal Circuit between Navigation ECU and DCM [09/2020 - ]: Wiring Diagram

GTY962889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
