Removal [09/2014 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [09/2014 - 11/2017] , or refer to REMOVAL [11/2017 - 03/2019] , or refer to REMOVAL [03/2019 - 09/2020] , or refer to REMOVAL [09/2020 - 01/2023] , or refer to REMOVAL [01/2023 - ]

  2. REMOVE AUTOMATIC LIGHT CONTROL SENSOR

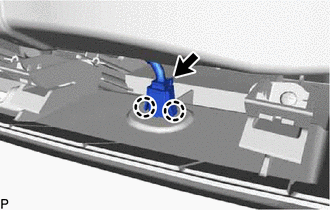

    1. GTY467934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the connector.

    2. Disengage the 2 claws to remove the automatic light control sensor.
