Replacement [09/2014 - 03/2019]: Procedure

SEPARATE LUGGAGE COMPARTMENT DOOR COVER

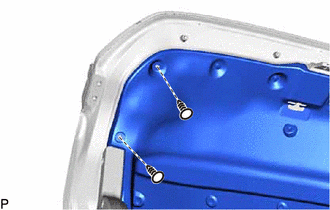

Using a clip remover, remove the 2 clips.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Turn back the luggage compartment door cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE BACK-UP LIGHT BULB

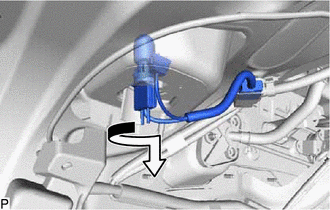

Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to disconnect them as a unit.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the back-up light bulb from the rear light socket and wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL BACK-UP LIGHT BULB

Install a new back-up light bulb to the rear light socket and wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

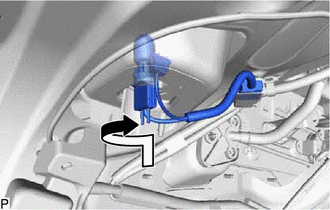

Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to connect them as a unit.

INSTALL LUGGAGE COMPARTMENT DOOR COVER

Install the luggage compartment door cover to its original position as shown in the illustration.

Install the 2 clips.
