Removal [09/2014 - 03/2019]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [09/2014 - 11/2017] , or refer to REMOVAL [11/2017 - 03/2019]

  2. REMOVE CLEARANCE LIGHT ASSEMBLY
    1. Disengage the clamp.

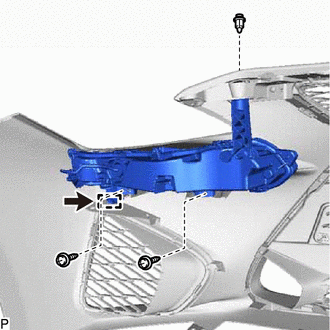

      GTY508377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
    3. Remove the clip.
    4. Remove the 2 screws.
    5. Disengage the 3 claws to remove the clearance light assembly.

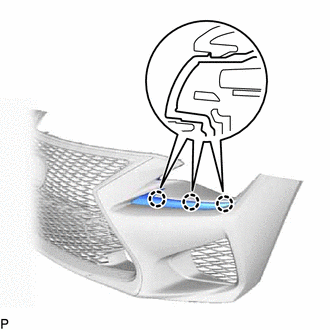

      GTY508376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
