Replacement [09/2014 - 03/2019]: Procedure
- REMOVE FRONT TURN SIGNAL LIGHT BULB
- Turn the steering wheel fully to the right.
HINT:
When removing the front turn signal light bulb of the headlight assembly RH, turn the steering wheel to the left.

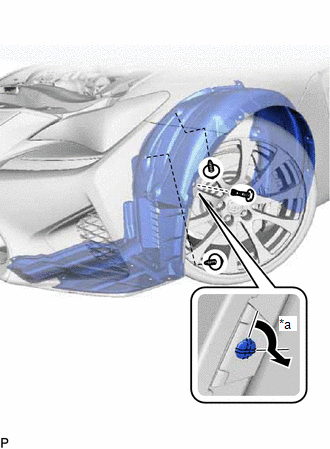

- Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.
*a 90° - Remove the 2 screws and separate the front fender liner.

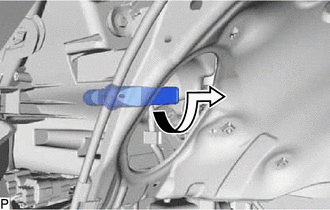

- Turn the headlight cord with the front turn signal light bulb as shown in the illustration to disconnect them as a unit.
- Remove the front turn signal light bulb from the headlight cord.
- Turn the steering wheel fully to the right.
- INSTALL FRONT TURN SIGNAL LIGHT BULB

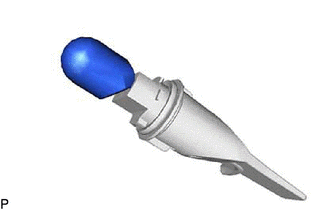

- Install a new front turn signal light bulb to the headlight cord.

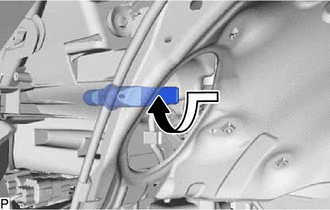

- Turn the headlight cord with the front turn signal light bulb as shown in the illustration to connect them as a unit.
- Install the 2 screws.

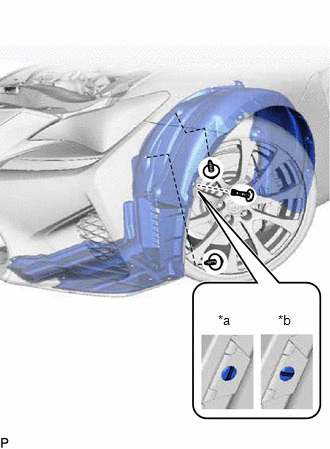

*a Correct *b Incorrect - Install the front fender liner with the pin hold clip as shown in the illustration.
- Turn the steering wheel to its original position.
- Install a new front turn signal light bulb to the headlight cord.
