Components [03/2019 - ]

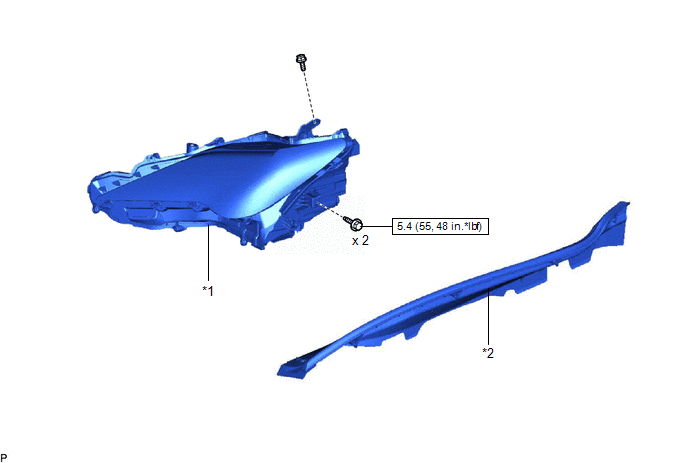

Fig 1: Headlight Assembly Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HEADLIGHT ASSEMBLY	*2	UPPER FRONT FENDER PROTECTOR
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Headlight Assembly Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

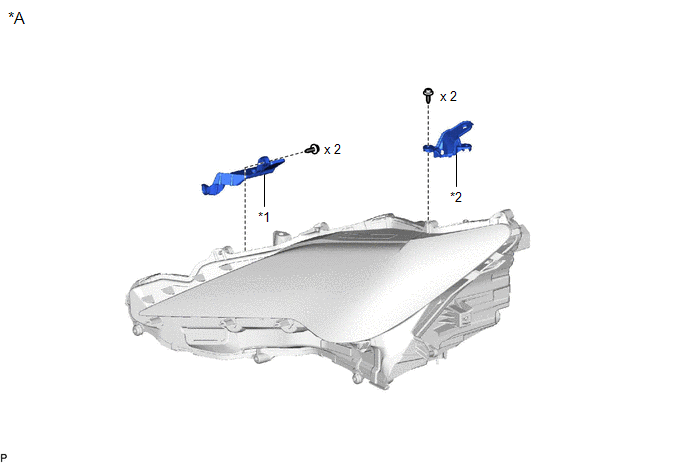

Fig 3: Headlight Assembly Replacement Components (3 Of 3)

*A	Bracket for Repair	-	-
*1	LOWER HEADLIGHT PROTECTOR RETAINER	*2	UPPER HEADLIGHT PROTECTOR RETAINER
