Removal [03/2019 - ]: Procedure

REMOVE FRONT BUMPER ASSEMBLY
Refer to REMOVAL [03/2019 - 01/2023] , or refer to REMOVAL [01/2023 - ]
REMOVE UPPER FRONT FENDER PROTECTOR
1. Disengage the guide.

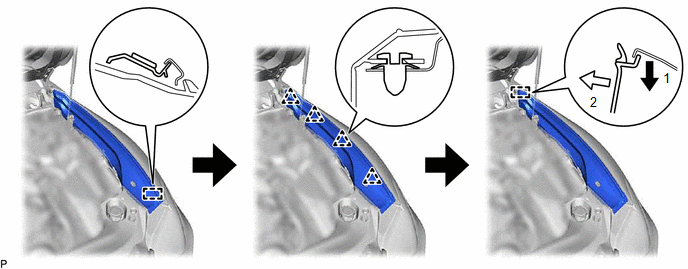

  Fig 1: Upper Front Fender Protector Guide Disengagement Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a clip remover, disengage the 4 clips.
3. Disengage the guide to remove the upper front fender protector as indicated by the arrows, in the order shown in the illustration.

REMOVE HEADLIGHT ASSEMBLY

Apply protective tape around the headlight assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

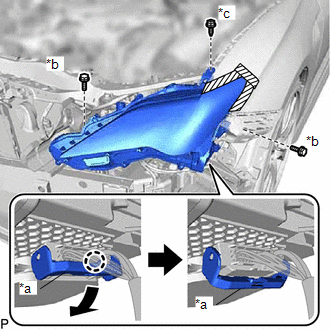

Disengage the claw and pull down the connector lock lever to disconnect the connector as shown in the illustration.
Remove the 2 bolts and screw.

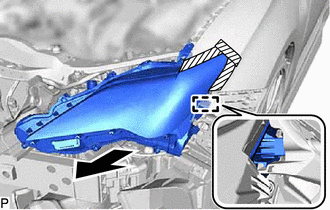

Disengage the guide to remove the headlight assembly as shown in the illustration.
