Repair [03/2019 - ]: Procedure
- INSTALL UPPER HEADLIGHT PROTECTOR RETAINER

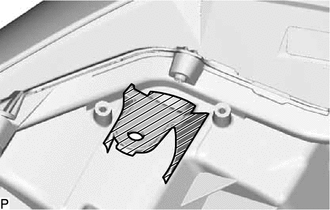

- Cut off the part shaded in the illustration and sand smooth with sandpaper.
HINT:
After cutting off the part, place the upper headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

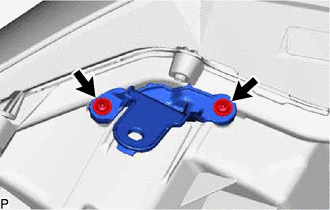

- Install the upper headlight protector retainer with the 2 screws.
- Cut off the part shaded in the illustration and sand smooth with sandpaper.
- INSTALL LOWER HEADLIGHT PROTECTOR RETAINER

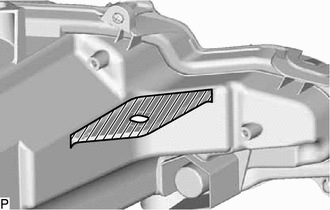

- Cut off the part shaded in the illustration and sand smooth with sandpaper.
HINT:
After cutting off the part, place the lower headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of a supply retainer.

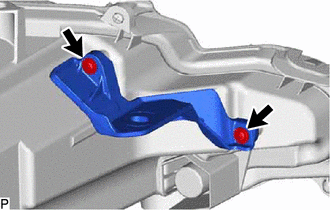

- Install the lower headlight protector retainer with the 2 screws.
- Cut off the part shaded in the illustration and sand smooth with sandpaper.
