Components [09/2014 - 03/2019]

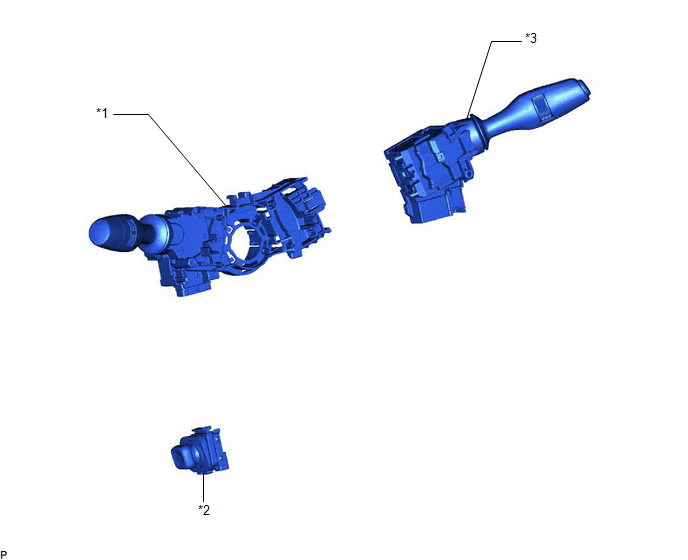

Fig 1: Headlight Dimmer Switch Replacement Components [09/2014 - 03/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
HEADLIGHT DIMMER SWITCH ASSEMBLY
*2
TILT AND TELESCOPIC SWITCH
*3
WINDSHIELD WIPER SWITCH ASSEMBLY
-
-
