Components [09/2014 - 03/2019]

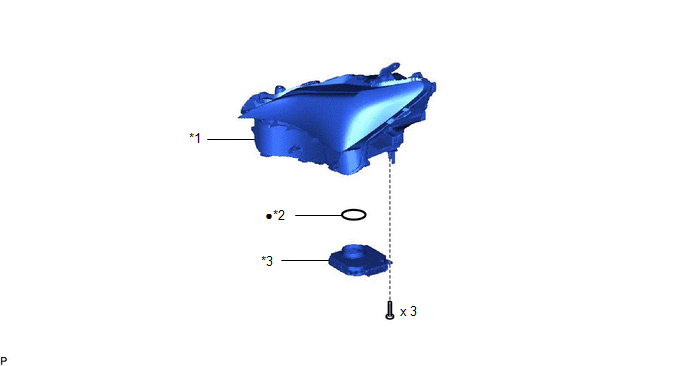

Fig 1: Headlight ECU Replacement Components [09/2014 - 03/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
HEADLIGHT ASSEMBLY
*2
HEADLIGHT GASKET
*3
HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY
-
-
•
Non-reusable part
-
-
